V6000 Series Test Modules
Posted at: Offers to Sell and Export | Posted on: Tuesday 14 August 2018 6:08 am | Poster last visit: Tuesday 14 August 2018 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Data Voice or Multimedia Network Equipment or Platforms and Accessories
» Network service equipment
» Cable network tester
» V6000 Series Test Modules
Product Description:

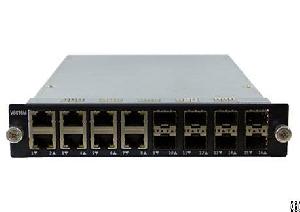

V6000 Series Test Modules
Network Communications Tester
Comprehensive Ethernet Tester
V6000 Series
Test Modules deliver complete network protocols testing and emulating functionality on BigTao series test platform. V6000 series may meet the test requirements of all kinds of networking devices in each stage of R & D, experiment, quality control, performance monitoring and production line.
With support of larger number of streams, higher port density and larger traffic capture memory, V6000 series offer a best cost-effective test solution.
V6000 series support a full IPv4/IPv6 stack. Each port can generate 64 streams with up to 4 variable domains per stream and simulate hundreds of thousands of interfaces and tens of millions of realistic connections.
With plenty of protocol templates and customizable packet payload and rate, V6000 series can provide complex protocol test and emulation.
V6000 series are supported in high performance chassis of BigTao200, BigTao6000 and BigTao12000, providing accurate chassis-to-chassis synchronization.
Key features
Support RJ45 interface on 10/100/ 1000Mbps and SFP on 100/1000 Mbps
Support line-rate traffic generating and analysis
Integrated IPv4 and IPv6 stack, support layer 2-3 network testing
Support a variety of protocols emulation including RIP, OSPF, ISIS, BGP, IGMP, PPPoE, DHCP, etc.
Accurate and dynamic data rate regulation based on port and stream
Line-rate traffic capture with support of packets editing, filtering and searching
Embedded PC running Windows XP for separately operating
Multi-user login with easy remote access via a network
Support customized error packet generation
Graphical user interface for configuration, data capture and real-time analysis
Test suit based on RFC2544, RFC2889 and RFC3918
Specification list
Model V6000 Series
Port Number Up to 16 x 1G ports per module
Port Rate RJ45: 10/100/1000M
Sfp:100/1000m
Physical Status Indicators: Tx/Rx
Weight: 0.6kg
Size: 271mm x 35.5mm x 180mm
Peak power requirement: 40W Max
Traffic Generation Traffic generating based on port and stream, per port have up to 64 different streams
Each stream provide up to 4 saltus step domain
Accurate data rate regulation based on port and stream, support dynamic data rate regulation
Each stream is capable of generating packets of IPv4, IPv6, TCP, UDP, TCP6, UDP6, Ping, IGMP, ARP, etc.
Each stream support multiple levels of VLAN and MPLS
Signature block is optional in each stream
Each stream supports user-defined packets
Traffic Statistics Statistics results can be displayed in the form of data table and chart
Each port can receive up to 256 streams
Traffic statistics based on streams:
TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency
Traffic statistics based on ports:
TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count
Traffic Capture RX data frame capture
TX/RX control frame capture
Frame capture based on filter templet
Decode hundreds of protocols
Support captured frame search according to specific conditions
Intuitive display of frames’ features such as source IP address, destination IP address, type of protocol and etc.
Protocol Emulation Integrated IPv4 and IPv6 dual stack, support ARP, NDP, Ping
Each port can simulate tens of thousands of interfaces and support sub-interfaces
Each port can simulate tens of millions of realistic connections
Protocol emulation on
Transmitting mode Continuous, Single burst, Multi burst, Time burst and Serialized
Software Support TeleExplorer test system, Test suit of RFC 2544/RFC 2889/RFC3918, TeleATT – automated Test system for product line
Others Easy-to-use graphical user interface
Support C++, C# and TCL API for customizing tests
Related Module List
Module Name Ports Per Module Connecter Type Single Rate
V6016C 16 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6016F 16 1000M SFP Fiber 1000 Mbps
V6016m 8+8 10/100/1000m rj45 copper and 100/ 1000m sfp fiber 10/100/1000 mbps and 1gbps
V6012C 12 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6012F 12 1000M SFP Fiber 1000 Mbps
V6008C 8 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6008F 8 1000M SFP Fiber 1000 Mbps
V6008m 4+4 10/100/1000m rj45 copper and 100/ 1000m sfp fiber 10/100/1000 mbps and 1gbps
V6004C 4 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6004F 4 1000M SFP Fiber 1000 Mbps
V8008F 8 10G SFP+ Fiber 10 Gbps
V8004F 4 10G SFP+ Fiber 10 Gbps
V8002F 2 10G SFP+ Fiber 10 Gbps
V9002F 2 40G QSFP+ Fiber 40 Gbps
Company Contact:
Contact Name: Liu Ziyuan
Company Name: Beijing Xinertel Technology Co., Ltd.
Email:
Tel: 86-10-82349338
Fax: 86-10-82349339
Street Address: 101, Building No.5,
No.8 Chuangye Road, Haidian
District, Beijing, China
Beijing, Beijing 100085
China
Website: https://www.xinertel.net
Member name: xinertel
Country:
China
Member Since: 14 August 2018
Total Leads: 13 xinertel Import Export Business Leads
Business focus: Network Performance Tester, Portable Ethernet Tester, Comprehensive Ethernet Tester
