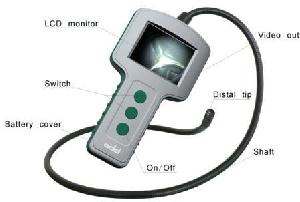

The Video inspection scope is for remote inspection of areas generally inaccessible to the
It comes with a distal video camera at the end of a 36" shaft for internal inspection of engines A/C system and any space such as walls or old tree trunks.
Imaging and illumination is provided by a full colour image sensor and dual solid state LEDs which are controlled by an on/off rocker switch.
The 2.5" full colour LCD screen allows you to observe live video from the distal camera.
The unit is powered by 4 x AA batteries and comes in a protective case for storage and transportation.
The accessory mirror allows you to see 90 degrees to the axis of the shaft.
Cable length and diameter: 36" x 10mm
Cable type: Obedient
Distal tip diameter: 0.42" max
Diameter with accessories: 0.46" max
Viewing angle: 55 °
Viewing distance: 0.4" to infinity
Resolution: 320 x 240 pixels
Viewing monitor: Colour 2.5" LCD
Video out port: RCA - NTSC signal
Shaft radius: 2.5" min
Power: 4 x AA alkaline batteries Battery life: 4 hours
Storage temperature: -20°C to +70°C
Operating temperature: 0°C to +45°C
