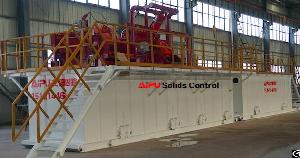

Oil and gas exploration drilling mud solids control system of Aipu is high quality equipment and widely
used in both onshore and offshore rig.
The system including shale shaker, hydrocyclone separators, decanter centrifuge, mud agitators, mixing pump, mud tanks, and so on.
Working Procedure Of Drilling Fluid solids Control System
1. Drilling fluids from drill hole will feeding into shale shaker buffer box by pipeline, the shaker can install shaker screen mesh API 35 to API 120 to separate larger drilling cuttings. Fluids part will drop into sand trap through mesh screen.
2. Mud from sand trap will over flow into next compartment and vacuum degasser will suction mud to degasser and treated mud will overflow into degasser compartment.
3. Desander feeding pump will pick up mud from degasser compartment and feed into desander cyclone for 47 – 76 micron separation. Solids part will drop from desander nozzle and fluids over flow into desander compartment.
4. Another will pick up mud from desander compartment and feed desilter cyclone, solids part drop through desilter nozzle and fluids over flow into desilter compartment.
5. A slurry pump or screw pump then pick up mud from desilter compartment into decanter centrifuge for 2 – 7 micron separate and clean mud flow into centrifuge compartment.
6. All tank compartments after desilter compartment we name as clean mud, mixing pump can suction or discharge to any of the clean mud tank for mud transfer or new mud mixing.
7. Mud pump suction line arrange in all clean mud tank with valve.
