• "ABM" Power Driven Winch Machines are designed as per IS : 9507 - 1979 and are suitable
for Heavy Duty
• Speeds other then given in Technical Data can also be available.
• Generally, Winches with Right Hand Operation are manufactured, however the same can be supplied with
outer side operation also as per requirement
• Fabricated with Rolled Steel Sections / Plates properly ribbed, floored with Chequered plate for working
area, Lifting lugs, Anchoring Holes for foundation, provided.
• 1st stage reduction with Worm Reduction Gear Box of reputed make & other reduction with open Spur
Gears & Pinions.
• Steel Fabricated Drum duly machined, with flanges at both ends, winding capacity 100 mtr. of Wire Rope.
• Drums with larger winding capacity is also available.
• 6 x 19, IWRC construction, best plough steel confirming to IS - 2266 is supplied with Winch machine at
• High Starting Torque, class 'B' Insulation, 150 Starts / Hr, 415 V, 50 Hz, 3 Phase, A.C. Insulation, Squirrel
Cage / Slipring Motors confirming to IS-325 of reputed make like NGEF / AEI / SIMENS etc.

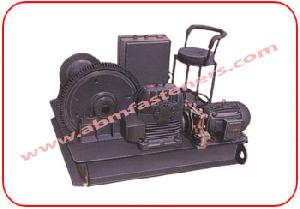

WINCH MACHINE (With Electric Wire Rope) Page 2 of 2
CONTROL & CONTROL PANEL
• The winch is operated by Push Button Station / controller at 110 V, fixed on machine.
• The Control equipments like Tripple Pole Reversible Contactors, H.R.C. fuses, Pilot Lamp etc. of reputed
make like EE / BCH / LT are housed in dust & Vermin Proof Steel Sheet Panel Box.
• One step down transformer is also provided for safety of operating Personnel.
• Overload Relay with single Phasing protection is provided at extra cost.
• Electromagnetic / Electro Hydraulic Thruster, DOuble Shoe Type Brake and / or Hand Operated brake
provided as per requirement.
• Rotary Gear Type Switch is provided to prevent over Hoisting / Traveling at extra cost, if required.
• All machines are tested at 25% overload.
