Insulating Glass Machine Line

Posted at: Wanted International Agents and Distributors | Posted on: Sun 04 Jan, 2009 1:55 am | Product Category: Insulating glass [58]

insulating glass machine line
Products Photos CatalogInsulating Glass Photos Catalog



Hi, we're insulating glass machine manufacturer in China, we have been in this fied

for 8 yeas, with



our continuous effort our machines have been sold well both at home and abroad,

and now, we're trying to enlarge our world market,it would be very good if you have the interests

in being our agent for our insulating glass machine lines,we surely can offer you a competitive price.

additional: our machine has got ISO9001 and CE certificates

welcome to contact us for more detials

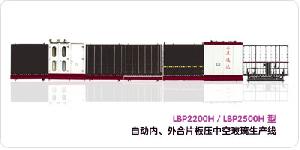

Detailed Product Description for this LBP2500H insulating glass machine line

Performance characteristic:

This insulating glass line is special equipment for insulating glass with aluminum frame

1.Automacticly discern the membrane of the coated glass

2.Human-computer interfacce for easy operation

3.The washing machine adopts stainless steel and other corrosion resistant material,good

water proof,security,hygiene,and long useful life.

4.Can clean 3~25mm thickness glass,wide sphere of application.

5.Reasonable combine the inner and out assemble glass,That can process same edge

glass,and double insulating glass i.e.three layers glass with high efficiency.

6.Adopts the world famous brand low-voltage apparatus,sensor and PLC,etc.

7.Treat the surface of plate guard through baking paint,powder coated.Appearance beauty and

wear well.

8.The plate press part can be opend in large journey to max.500mm,that easy to aintenance.

9.The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.

MAIN TECHNIQUE PARAMETER

1.Power supply 380V,50HZ

2.Total power 51.5KW

3.Process glass size: (Max) 3000x2500 mm;

(Min) 400 x 400 mm

4.The original glass thickness: 3~25mm

5.Max D-value of different edge glass: 50mm

6.Working speed: washing speed: 3~9m/min

conveying speed after washing: 15~45m/min

7.outline dimension:(L x W x H) 19600 x 2500 x 3680mm

8.net weight: 10600Kg
