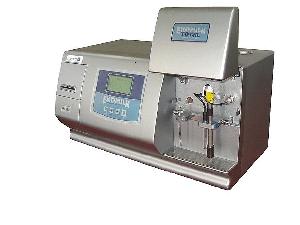

Ultrasonic Milk Analyzer Model Ekomilk Total

EKOMILK TOTAL is robust, reliable, automated multi-parameter milk analyzer providing rapid test results for: Fat, Protein, Solids Not Fat, Lactose, Density , Freezing point, Added Water, pH, Temperature and Conductivity in fresh milk (cow, sheep and/or buffalo, goat). RS-232 interface, Micro printer and automatic data capture are integrated. Based upon ultra-sound technology, the instrument does not require any costly chemicals, caustic or reagents for testing. EKOMILK TOTAL is an example of accuracy and efficiency of bench chemistry methods. Test results are coming just in 40 seconds!

65 - 70 measurements per hour

ADVANTAGES:

Fast Analysis - allows a large number of measurements to be done;
Simple and lightweight design;
+12V DC and 220V (or 110V optional) AC Power supply;
Cost effective:
- Low power consumption;
- Very small quantity of milk required - 25 ml;
- No acid or other chemicals are used;
One year full warranty;
Measuring accuracy adjustment can be done by the user;
RS 232 Interface and Data collection System built in;
ESC POS Printer built in.

ENVIRONMENTAL CONDITIONS:

Ambient air temperature 15° - 35°C
Milk temperature 5° - 35°C
Relative humidity 30% - 80%
Electrical Parameters:
AC Power Supply voltage 220V ±5%
110V +10/-15%
DC Power Supply voltage 12V to 14,2V
Mechanical Parameters:
Dimensions (WxDxH) 530 x 320 x 290 mm
Weight 12.6 kg


MEASURING PARAMETERS:
Fatness from 0,5% to 12% with accuracy ± 0,1%
Solids non fat (SNF) from 6% to 12% with accuracy ± 0,2%
Milk density from 1,0260 g/cm3 to 1,0330 g/cm3 ± 0,0005 g/cm3
Protein from 2% to 6% with accuracy ± 0,2%
Lactose from 0.5% to 7% with accuracy ± 0,2%
Freezing Point from 0 to -1.000 °C with accuracy ± 0,015°C
Added water to milk from 0% to 60% with accuracy ± 5%
pH from 0,00 to 14 pH with accuracy ± 0,02
Conductivity from 2 to 20 mS/cm ± 1 % (18°C)
Temperature from 0 to 50 °C with accuracy ± 0,1°C
Data Collection System: is able to store up to 120 measurements.
