3 Rolls Double Pinch Plate Bending Machines 3100mm X 110 / 80mm

Posted at: Offers to Sell and Export | Posted on: Tuesday 23 March 2010 1:48 pm | Poster last visit: Monday 11 June 2018 | Targeted Countries: USA | Indonesia

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Raw materials processing machinery » Machinery for working wood and stone and ceramic and the like » Bending machines » 3 Rolls Double Pinch Plate Bending Machines 3100mm X 110 / 80mm


Product Photo:

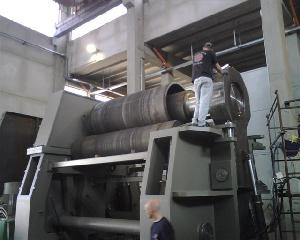

3 rolls pinch plate bending machines 3100mm x 110 80mm

Similar Products Catalog:
Products Photos Catalog Rolls Pinch Plate Photos Catalog

Product Description:

we are offering 3 Rolls Double pinch plate bending machines 3100mm x 110/80mm

Very good opportunity


due to an order cancellation we will have ready in 5 Months an MG3110T plate roll

At a very interesting price

Made in Italy - Brand MG srl MG3110T

Technical data

Rolling capacity mm. 110

Pre-bending mm. 80

On Half plate 1500mm mm 150 rolling

Installed power hp. 150

Top roll diameter mm. 820

Side rolls diameter mm. 760

Machine Size: 3, 630 W x 7, 400 L x 3, 010 H - Weight 95 Tons

- Movable Console

- Hardening Rolls 55-60HRC

- Rolls 42CrMn Forged steel

- Digital readouts ( ea. axs )

- Conical bending system

- Hydraulic system for opening the machine and ejecting the tube.

- Safety system to conform with EC Rules

- Permanent lubrication system

- Planetary movement of the rolls to avoid any kind of friction and to guarantee height precision for the machine life.

- Parallelism control by means of massive torsion bars to guarantee height precisions also where the newest hydraulic systems fail.



Company Contact:

exportmg photo
Contact Name: A.Manassero
Company Name: Mg Srl
Email: Email
Tel: +390172691327
Fax: +390172691676
Street Address: Via Ceresolia, 20
12045 - Fossano (cn) Italy
Website: https://mgsrl.com
Member name: exportmg
Country: Italy-IT Italy
Member Since: 02 October 2009
Total Leads: 25 exportmg Import Export Business Leads
Business focus: Hydraulic Plate Bending Machines
