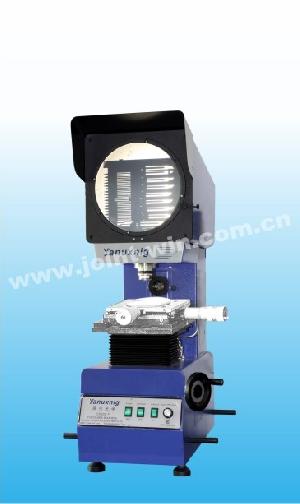

300 Vertical Profile Projector Model Cm-300a
Posted at: Offers to Sell and Export | Posted on: Tuesday 9 August 2011 6:44 am | Poster last visit: Wednesday 8 May 2019 |
Product Description:
Introduction:
Profile projector model CM300A is precise and excellent non-contact optical measuring
instrument integrated with optical, mechanical, electronical technology. It is widely used in the field of mechanism, meter, electronic, rubber industry for quality control, it can measure all kinds of surface and profile of complicated work-pieces, such as cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.
The Specifications:
Model
Items CM-300A
Work-stage The size of metal work-stage(mm) 200*160
The size of glass work-stage(mm) Φ90
X.Y axis travel (mm) 50*50
Z axis travel (mm) 85
Mini displaying value(mm) 0.01 (Mechanical reading)
Projection screen Size (mm) Ø308, effective range≥Ø300mm
Rotary range 0 ~ 3600
Angle resolution 2’ (Mechanical display value)
Lifting system 45 0 helical gear guide lifting system
Objectives Magnification 10X(Standard) 20X(Option) 50X(Option) 100X(Option)
Object view Ø30mm Ø15mm Ø6mm Ø3mm
Working distance 78.33mm 44.93mm 27.63mm 23.60mm
Instrument illumination Transmission and reflection light source: 24V/150W-halogen lamp
Power AC110V/220V; 50Hz/60Hz
Accuracy 3 + L/50 (um)
Dimension (Lx W x H) 570*770*1180mm
Weight 110Kgs
Optional Accessories 20x, 50x, 100x objective and mirror, 2D Measuring software.
Company Contact:
Contact Name: Shirley
Company Name: Guiyang Joint-Win Import And Export Co., Ltd
Email:
Tel: 86-851-6578100
Fax: 86-851-6578700
Street Address: 8 Floor, 4 Unit, F
Building, Hequan Road, Guiyang
Guizhou 550002 China
Website: http://www.joint-win.com.cn
Member name: jointwin
Country:
China
Member Since: 09 August 2011
Total Leads: 17 jointwin Import Export Business Leads
Business focus: Vision Measuring Machine, Precise Measuring Instruments Integrated With Optics, Profile Projector, Tool Maker Microscope
