Product Description:

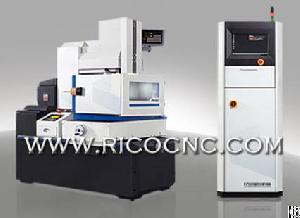

4-Axis CNC Wire Cut EDM Electrical Discharge Machining Machine
Model: RFR-500M
Wire EDM is an ultra-precise
method to cut virtually any electrically conductive material, regardless of alloy or hardness. This 4 axis machining Wire EDM can cut 2 axis profiles, tapered profiles, and full 4 axis profiles.
A modern Wire EDM machine has 4 independent axes of movement (5 if counting Z). The position of the wire guides can be independently and precisely controlled both above and below the part which allows "tipping" of the wire in any direction (often to 20° or even more). The 2 axes "below" the part are known as X/Y, and the 2 axes "above" the part are known as U/V. The U and V axis are actually "differential" axis in that moving X/Y moves the entire wire in relation to the part while keeping it vertical, while moving U and/or V moves the top of the wire relative to X/Y.
4 Axis Wire EDM allows the cutting of tapered parts, as well as other very complex shapes. The only limitation is that the molybdenum wire must be able to pass through or by the workpiece.
4-Axis CNC Wire Cut EDM Machine Features:
1) Parameter is not required to put in, Artificial Intelligence works out perfect parameter immediately after putting in cutting thickness and wire diameter. Different accuracy based on different workers with different experience will be solved.
2) Roughness: Ra ≤0.8um
3) 3 Times Cutting thickness: ≥200mm
4) Max Machining Speed: 200mm2/min
Wire EDM 4-Axis Cutting Machine Standard Configurations:
1) Window XP System with Auto-CAD software control System.
2) PANASONIC Inverter ( Japan Panasonic )
3) "C" Structure HT250 Casting Machine Body ( Japan HTK )
4) Standard DRO and Z axis motorized drive up and down.
5) Hiwin brand linear guide way install on XYZUV 5 axis (P lever)
6) Hiwin brand ball screw install on XYZUV 5 axis (C3 lever )
7) Automatic center lubrication system. (Not manual)
8) LED Inside light (Not outside bulb)
9) Automatic double direction wire tension system
10) Standard ±12 degree taper cutting system
11) PHILIPS Industrial Computer (Philips Europe)
12) Automatic parameter generating system.
Four Axis Wire EDM Machines Cooperated Suppliers:
Linear guide way and ball screw supplier (HINWIN Taiwan)
Bearing supplier (NSK Japan )
Motor, Driver and Electric accessories supplier ( SIEMENS German)
Electric accessories supplier ( NCC Japan )
Transducer (converter) ( PANASONIC Japan)
Servo driver supplier ( YASKAWA Japan )
Handle Remote supplier (EUCHNER German )
Industrial control system supplier (PHILIPS Europe)
The Benefits of Machining via Wire EDM are:
1. The ability to machine very small internal radii (can machine a radius as small as .004")
2. The ability to machine swarfing surfaces, walls with varying angles
3. Superior surface finish
4. The ability to machine hardened steel
4 axis CNC EDM, 4-Axis CNC Wire Cut EDM, 4-axis EDM machines, wire edm 4-axis cutting, 4-axis wire paths, wire edm 4 axis machining, four axis wire EDM machines, 4-axis Wire EDM CNC machines, 4-Axis Wire EDM Machine, 4 Axis Wire EDM, 4 axis wire
