4 Color Sheet-fed Offset Printing Press
Posted at: Offers to Sell and Export | Posted on: Friday 25 February 2011 3:16 am | Poster last visit: Friday 1 June 2012 |
Product Category: Main
» Printing and Photographic and Audio and Visual Equipment and Supplies
» Printing and publishing equipment
» Printing machinery and equipment
» Offset printing presses
» 4 Color Sheet-fed Offset Printing Press
Product Description:

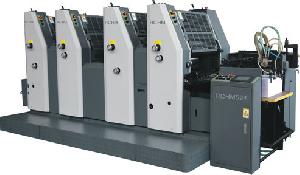

RCHM524 sheet-fed offset printing press print 4 or 5 color on paper sheet.Equipped with auto-ink cleaning
device, it shortens the cleaning time and save the time of ink replacing, makes operator work easily.
Main Technical Parameter:
Max.size of sheet -fed : 520mm×365mm
Min. size of sheet-fed: 257mm×182mm
Max.printing area: 505mm×350mm
Reference printing paper thickness:0.04- 0.3mm
Paper feed device: stream feeder
Max.Paper feed height: 500mm
Max.Paper delivery height: 420 mm
Dampening device: continuous water feeding.
PS plate size: 510mm×400mm×0.15mm
Ink roller amount: 16pcs of ink rollers（ink former:3pcs）
Blanket size: 510mm×452mm×1.9mm（with metal clamp）
Printing speed: 3000~12000sheets/h
Motor power :Main motor5.5KW/Air pump:1.5KW/Air compressor:0.75KW
Power supply: 3P/380V 50/60HZ 45A
Dimension: 3660（L）×2000（W）×1645（H）mm
Weight: 7000Kg
For more details pls visit our website to watch the working videos or contact us, thanks!
Company Contact:
Contact Name: Jamie
Company Name: Rich Industry Holding Co., Ltd
Email:
Tel: 86-020- 62183235
Fax: 86-020- 62183236
Street Address: 448-456 Huangshixi
Road, Guangzhou, China
Website: http://www.richmachine.cn
Member name: Richindustryholding
Country: China
Member Since: 25 February 2011
Total Leads: 155 Richindustryholding Import Export Business Leads
Business focus: Paper Converting Machine, Continuous Form Processing Machine, Sheet-fed Offset Press, Continuous Form Printing Machine
Verify: Safe Import Export Tips
