4k Edge Blending Hardware Warping Box

Posted at: Offers to Sell and Export | Posted on: Sunday 12 April 2026 4:49 am | Poster last visit: Sunday 12 April 2026 |

Product Category: Main » Printing and Photographic and Audio and Visual Equipment and Supplies » Audio and visual presentation and composing equipment » Video and combination video and audio presentation equipment and hardware and controllers » Video editors » 4k Edge Blending Hardware Warping Box


Product Photo:

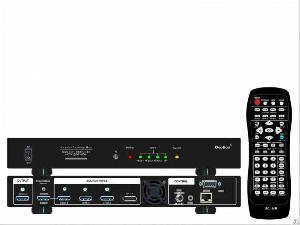

4k edge blending hardware warping box

Similar Products Catalog:
Products Photos Catalog Edge Blending Hardware Photos Catalog

Product Description:

Model: UD101

UD101L is a compact 4K warping processor and professional edge blending hardware for projection


mapping, curved screens, and multi-projector setups, combining warp/de-warp, video wall control, format conversion, scaler switching, PIP/POP, image cropping, flip/rotation, and quad split multi-view, with precise geometry alignment up to 120 × 68 control points and easy control via IR, USB, Ethernet, or WebGUI.

Specifications

1. Input: 3x HDMI 2.0b, 1x DP1.4, Output: 1x HDMI 2.0, input seamless switcher function can be selected.

2. Loop output: 1x HDMI 2.0b for audio and daisy chain connection.

3. HDCP compliance: Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3, Output: HDCP V2.0/V1.4.

4. input resolution: DisplayPort: 7680*4320 @30Hz, HDMI: 7680*2160 @30Hz, 7680*1200 @60Hz, 4096*2400 @50Hz, 4096*2160 @60Hz.

5. Input supports progressive and interlaced RGB/YUV signal, 4:4:4 Chroma sampling, up to 30 Color bits.

6. Support non-VESA standard input timings for easy connection with various signal sources.

7. 16 selectable Outputs: HDMI 2.0 up to 4096*2160 @60Hz, progressive 4:4:4 RGB.

8. 2 frames system latency: 33ms (@V=60Hz)

9. Warp engine for geometry alignment up to 120x68 control points.

10. Maximum geometry adjustment up to 1200 pixels in both H&V directions for each corner.

11. Support W shape Corner Wall adjustment in H&V at flexible location.

12. Support Linearity Grid Line adjustment for quick H&V line position alignment. It is good for the line gap adjustment on curved screen display.

13. Edge Mask with 8 control points up to 900 pixels at each control point in H&V directions.

14. Embedded video wall function for image split, cropping and aspect ratio adjustment.



Company Contact:

No member photo
Contact Name: Steve Wang
Company Name: Vns Inc.
Email: Email
Tel: 886-2-27922819
Fax: 886-2-87928736
Street Address: 3f, No. 27, Lane 66,
Ruiguang Rd., Neihu District,
Taipei, Na 11466
Taiwan
Website: https://www.vns.com.tw/
Member name: vnsinc
Country: Taiwan-TW Taiwan
Member Since: 12 April 2026
Total Leads: 6 vnsinc Import Export Business Leads
Business focus: Edge Blending Processor, Hdmi Splitter, Video Wall Controller, Mulitviewer Warping Box, 3d Processor
