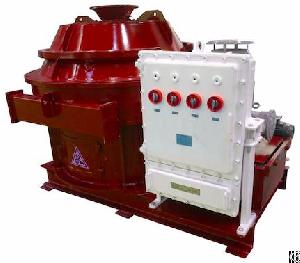

Aipu Solids Apvcd Cuttings Dryer Used In Drilling Waste Management
Posted at: Offers to Sell and Export | Posted on: Saturday 12 August 2017 3:27 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Industrial filtering and purification
» Separators
» Centrifuges
» Aipu Solids Apvcd Cuttings Dryer Used In Drilling Waste Management
Product Description:
Vertical cuttings dryer is one kind of vertical centrifuge dryer. they are widely used in drilling waste
management to process well drilling mud waste the solid disposal. Especially for the oil based mud. Please find more information below
The Vertical Cuttings Dryer uses centrifugal force to dry drilled solids in oil or synthetic base fluids. A stainless steel screen bowl traps “wet” solids and accelerates them up 900RPM with G force to 420G.
Liquid is forced to pass through the screen bowl openings, while “dry” solids are extracted by the angled flights attached to the cone, which rotate slightly slower than the bowl. Tungsten carbide protects the flights from abrasive solids and ensures long operational life. This aids in maintaining a constant gap between the scroll and screen bowl, which is crucial for proper operation.
Vertical cuttings dryer holding high efficiency separation on drilling fluid and it will minimize drilling cuttings content in drilling fluids. The cuttings dryer decrease disposal percentage benefit much on “0” disposal application. Separate drilling mud recycling by solids control system effectively. Recycle the lost mud caused by equipment failure, etc. The common spare parts are easy to be replaced. The wolfram carbide alloy knives on cones are changeable also minimize the whole device failure
Vertical cuttings dryer specification
Model APVCD930 APVCD930-VFD
Capacity 30~50 Tons/H 30~50 Tons/H
Screen Max Dia 930mm 930mm
Rotation Speed 900RPM 0-900RPM
Screen Opening 0.25-0.5mm 0.25-0.5mm
G Force 420G 0-420G
Main Motor 75HP 75HP
Oil Pump Motor 0.75HP 0.75HP
Dimension 2800×1820×2000 2800×1820×2000
Weight 4450Kg 4980Kg
Company Contact:
Contact Name: Jessie
Company Name: Aipu Solids Control
Email:
Tel: +86-18691483929
Fax: +86-2963611978
Street Address: 4th Jingyuan Road,
Jinghe Industry Zone
Xi'an, Shaanxi 710200
China
Website: https://www.aipusolidcontrol.com
Member name: aipusolidcontrol
Country:
China
Member Since: 11 July 2017
Total Leads: 172 aipusolidcontrol Import Export Business Leads
Business focus: Solids Control Equipment, Shale Shaker, Mud Cleaner, Centrifuge
