All 2g And 3g Magnetic Antenna Frequency Range 810-960, 1710-2170mhz

Posted at: Offers to Sell and Export | Posted on: Tuesday 29 December 2015 5:21 am | Poster last visit: Wednesday 8 June 2016 |

Product Category: Main » Information Technology Broadcasting and Telecommunications » Data Voice or Multimedia Network Equipment or Platforms and Accessories » Fixed network equipment and components » Portable antenna » All 2g And 3g Magnetic Antenna Frequency Range 810-960, 1710-2170mhz

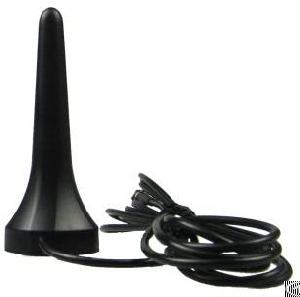

Product Photo:

2g 3g magnetic antenna frequency 810 960 1710 2170mhz

Similar Products Catalog:
Products Photos Catalog Magnetic Antenna Photos Catalog

Product Description:

Application:All 2G and 3G mobile networks

Frequency Range:810-960, 1710-2170Mhz


Average Gain:4 dBi

at 810-960Mhz

5 dBi at 1710-1990Mhz

5 dBi at 2110-2170Mhz

VSWR:<1.5 : 1

Impedance:50 ohm

Max Input Power:20W

Polarization:Vertical

Hpbw:360

Radome Color:Black

Radome Dimensions:phi35x91mm

Cable and Connector:With 2500mm LMR-100 cable and SMA male connector

Wind Load:N/A

Operating Temperature:- 20 to +60 Celsius

Storage Temperature:- 40 to +70 Celsius

Net Weight:62g

Package Weight:7.25kg(100pcs)

Package Dimensions:315x240x300mm

Mounting :To put the antenna on the steel

Free Sample

Price and other details to be agreed

AnteTec Technologies products widely used in wireless equipments of GSM, CDMA, WCDMA, CDMA2000, TD-SCDMA, LTE, DVB-T, GPS, GpsOne, Glonass, Beidou, Wi-Fi, WiMax, Bluetooth, ISA100, Zigbee, Wireless HART, WIA-PA, etc. Such as mobile phone, PAD, router, wireless surveillance, wireless security, industrial wireless networks, navigation device, vehicle wireless device, etc.

AnteTec Technologies Ltd, ISO9001: 2000 certified corporation, mainly specializes in R& D and manufacturing embedded/ external antenna, coaxial connector, cable assembly and other RF components.

We are energetic high- tech team with experienced designers and precise corporate culture. We have the capacity that make millions piece per year. Our corporation has the semi- automatic coaxial cable stripper, automatic cutting machine etc, could have custom- made semi- rigid, semi- flexible and flexible cable assembly.

The frequencies of our antennas cover 10- 6000MHz currently, suitably used in GSM, CDMA, DVB, WCDMA, CDMA2000, GPS, ISM, TD- SCDMA, WLAN wireless equipments, such as mobile, wireless pay phone, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device, etc.

The idea we pursue "œCreate The Better Value For The Customer".
