Anemometer 4836c

Posted at: Offers to Sell and Export | Posted on: Tuesday 7 July 2009 7:56 am | Poster last visit: Thursday 18 June 2015 |

Product Category: Main » Laboratory and Measuring and Observing and Testing Equipment » Measuring and observing and testing instruments » Meteorological instruments » Anemometers » Anemometer 4836c

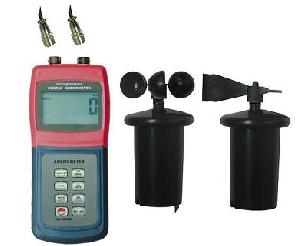

Product Photo:

anemometer 4836c

Similar Products Catalog:
Products Photos Catalog Anemometer 4836c Photos Catalog

Product Description:

1.application

Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment



monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department

Model:AM4836C

2. specifications

2.1 General Specifications

Display 0.5" (13 mm) 4-digit LCD

Measurement units Air Velocity: m/s, km/h, ft/min, knots

Air Flow: CMM (m3/min);

CFM (ft3/min)

Beaufort Scale: Force

Wave Height: m

Direction: from the North direction

Temp: C & F

Data hold Maximum Value

Data memorized 24 groups

Sampling rate reading per second approx

Sensors Air velocity/flow sensor:

3-cup probe

Direction probe: Low friction probe

Temperature sensor:

Precision thermistor

Automatic Power off 0-9 minutes set by users

Data Output RS 232 C serial interface

Operating Temperature 32F to 122F (0C to 50C)

Operating Humidity Max. 80% RH

Power Supply 4x1.5AAA size

Weight 260g (0.57lb) including batteries & probe

Dimensions Main instrument: 156x67x28mm

(6.1x2.6x1.1")

Velocity sensor: 65x65x115mm

Direction sensor: 86x69x115mm

Optional Accessories Cable+Software for RS232C or USB

2.2 Range Specifications

Air Velocity Range Resolution Accuracy

m/s (meters per sec) 0.4-45.0 0.1 m/s (2%+0.1m/s)

km/h (kilo-meters/hour) 1.4-162.0 0.1 km/hr (2% +0.1km/hr)

ft/min (feet per minute) 80-8860 0.1 ft/min (2% + 1ft/min)

knots (nautical MPH) 0.8-88.0 0.1 knots (2% +0.1 nots)

Air Flow

CMM (cubic meters/min) 0-9999 0.001 to1 (2% +1m3/min)

CFM (cubic ft/min) 0-9999 0.001 to1 (2% +1ft3/min)

Beaufort Scale 0-12 0.1 0.5

Direction 0-360 22.5 22.5

Wave Height 0-14 0.1 0.1

Air Temperature 32 - 140℉ 0.1 ℉ 0.9 ℉

0-60 ℃ 0.1 ℃ 0.5 ℃
