apg casting machine
Serial No. Item Technical Parameters
2 Upper and lower core-pulling stroke 760*450mm
3 Mould clamping force 210KN
4 Mould clamping speed 3.2m/min
5 Max mould clamping distance 1250mm
6 Min mould clamping distance 240mm
7 Power of hydraulic station 5.5kw
8 Heating power 24kw
9 Incliation angle of complete machine Vertical 0-5 degree, Horizontal 0-5 degree
10 Weight of complete machine 4500KG
11 Mould-filling weight 2 tone
12 Outline Dimension 3400(L)*1300(W)*2800(H)mm
It is large-sized equipment, mould plate as large as
600x800mm, has large upper and lower core-pulling distance.
It is applicable for large-sized products such as transformer, large insulating cylinder, contact cover, bending plate, insulating
housing, disc insulator, etc.

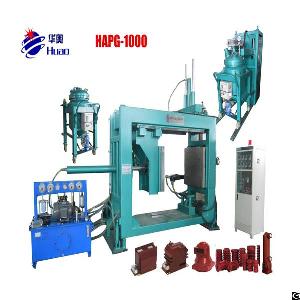

The composition of the APG Claming Machine:The main machine+Mixing device(three sets)+ Stirring rack+Hydraulic Oil Pump+ Power distribution cabinet.
1.The biggest&only manufacturer at the same time do the APG Clamping Machine and APG Mould in china so that make the machine with the mold better coordination which ensure that product qualification.
2.The only company have product testing room in china, if necessary you can stay in our factory test output products(through the dielectric strength testing--the impact testing--the bending testing--partial discharge testing) until being qualified&higher quality and ready to shipment.
3.CE, ISO certificate and standards, owns many patents and independent intellectual property rights.
4.We can customize machine according to customer's needs.
Excllent aftersales services:
1. Have 23 year's experience of electric products production technology engineers to your company provide free technology training and help customers make the qualified products.
2. Have rich experience engineer to be responsible for new equipment storting to installation debugging and training.
Competitive ability of production:
Well equipped with complete facilitiesand more than 200 skilled workers and operates round the clock on three shifts, so we can keep the orders completed punctually!
Update the details:
1.Specially designed for transformer of thin film degassing and cycle heating system mixing device, greatly improving the uniformity of mixing and pumping vacuum material.
2.Combination of equipment, moulds, as well as under the engineers constantly summarize and improve the production equipment has superior performance, high efficiency energy saving etc.
3.By APG pressure gel molding process, greatly improving the production efficiency, increased the product surface bright and clean degree, reduce the mold cost, reduces the labor costs of inputs.
4.One-stop services for electric factory, we are manufacturer APG Clamping Machine, APG Mould, Oven for APG Processing, Testing Equipment, Epoxy Resin Material, Silicon Material, Release Agent, Winding Machine for CT&PT, Foil Winding Machine for Transformer, Laser Marking Machine can marking all kinds of materials, like epoxy resin.
