Arm Rotating Constant Acceleration Test System
Posted at: Offers to Sell and Export | Posted on: Friday 27 August 2021 9:39 am | Poster last visit: Thursday 30 September 2021 | Targeted Countries: Russia | Ukraine | Kazakhstan
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Mechanical instruments
» Test bar
» Arm Rotating Constant Acceleration Test System
Product Description:

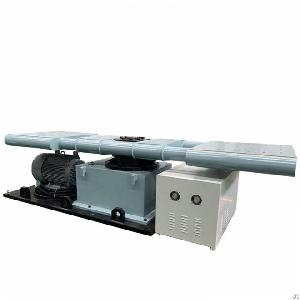

arm rotating constant acceleration test system
KCT31 series arm rotating constant acceleration test
system is used to determine whether the structural adaptability and performance are in good condition or not when the components and parts, devices and other electric and electronic products are subjected to the force (gravity is not included) given by steady state acceleration (also called constant acceleration) environment, to evaluate the structural integrity of some components, and to check the electrical parameters of test specimen in the constant acceleration environment, and to verify if the product can work normally and the bearing capacity of structure subjected to the constant acceleration stress in the expected environment.
Model KCT31-30 KCT31-50 KCT31-100 KCT31-100A
Max. load (kg)/ position 30*2 50*2 100*2 100*2
Acceleration (m/s2) 30~1000 30~1000 30~1000 30~1000
Max. specimen size (mm) 300*300*300 400*400*400 500*500*500 500*500*500
Specimen installed radius (mm) 1000 1200 1500 2250
Start time (min) ≤3 ≤3 ≤3 ≤3
Stop time (min) ≤3 ≤3 ≤3 ≤3
Continuous working time (min) 60 60 60 60
Consumption power (kVA) 40 40 40 55
Pit diameter (mm) Φ3000 Φ4000 Φ4500 Φ6000
Power connecting device 60 conducting ring, 500V 5A
Weight (kg) 2500 2800 3000 3500
Power supply Three-phase, 380V, 50/60Hz
Measurement and control system Computer automatic control and manual control
Remark Power connecting device and control accuracy can be configured according to related standards or customer’s requests.
Environment Temperature: 0~40℃, humidity: ≤80%, non condense
Company Contact:
Contact Name: Dan Feng
Company Name: Hyde Science And Technology Limited
Email:
Tel: 86-29-89182431
Fax: 86-29-89182431
Street Address: Road Tangyan
Xi'an, Shaanxi 710065
China
Website: http://www.globalhaide.com/
Member name: hydesciencechamber
Country:
China
Member Since: 26 August 2021
Total Leads: 76 hydesciencechamber Import Export Business Leads
Business focus: Environmental Chamber, Drying Oven, Vibration Shaker, Utm, Testing Machine
