Arm9 Development Board
Posted at: Offers to Sell and Export | Posted on: Tuesday 1 April 2014 3:34 am | Poster last visit: Tuesday 10 February 2015 |
Product Description:

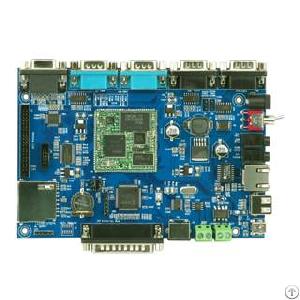

KIT2416 ARM9 development board is developed by Boardcon, based on Samsung ARM9 S3C2416 microprocessor.
The ARM chip S3C2416 can take the place of S3C2440A. It is with a clock speed of 400MHz. KIT2416 development board is using the structure of CPU board and mother board. The CPU board integrated S3C2416 ARM9 CPU, 64MB Mobile DDR2 SDRAM, 256MB NAND Flash, 10/100M Ethernet control chip SMSC LAN9221 and AC97 voice control chip WM8731. It's seamless welded on the mother board directly. The mother board is customizable. It integrates very rich interface resources for redevelopment, these resources include: VGA interface, ps/2 keyboard interface, RS232, RS485, CAN bus, 100M Ethernet RJ45 interface, LVDS interface, TFT-LCD interface, parallel printer port and digital I/O interface and so on. Besides, the drivers and the development cases in WinCE6.0 and Linux 2.6 help users with updating and replacing products quickly. The development board has passed the high and low temperature testing, to suitable for a variety of industrial application under the complex environment.
Feature
* CPU: Samsung ARM926EJS S3C2416, 400MHz industrial frequency
* 64mb ddr2 sdram
* 256MB NAND Flash
* Build-in 2D graphics acceleration video card, the resolution is up to 1024 x 768
* Support 4 RS232 DB9 Ports, 1 RS485 Port(optional)
* 4.3 / 7 inch TFT LCD
* Support PS/2 keyboard (optional)
* 1 parallel printer port (optional)
* 1 CAN 2.0 bus interface(optional)
* 1 SD 2.0 and 1-way MMC4.0
* Support booting from NAND Flash and SD
* Integrated package service( development board + data +LCD)
* Operating System: WinCE6.0 and Linux 2.6
* Optional module: Printer, WIFI, VGA
* Dimensions: Carrier board-161.93mm x111.13mm; CPU board- 40mm x 40mm
About Design Services
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
Company Contact:
Contact Name: Woo
Company Name: Boardcon Technology Limited
Email:
Tel: +86-755-26481393
Fax: +86-755-27571552
Street Address: Room702, Xinan
Business Building, 45zone, Baoan
District
Shenzhen, Guangdong 518133
China
Member name: Boardcon
Country: China
Member Since: 06 January 2014
Total Leads: 35 Boardcon Import Export Business Leads
Business focus: Single Board Computer, Som, Embedded Design
Chat:
Verify: Safe Import Export Tips
The ARM chip S3C2416 can take the place of S3C2440A. It is with a clock speed of 400MHz. KIT2416 development board is using the structure of CPU board and mother board. The CPU board integrated S3C2416 ARM9 CPU, 64MB Mobile DDR2 SDRAM, 256MB NAND Flash, 10/100M Ethernet control chip SMSC LAN9221 and AC97 voice control chip WM8731. It's seamless welded on the mother board directly. The mother board is customizable. It integrates very rich interface resources for redevelopment, these resources include: VGA interface, ps/2 keyboard interface, RS232, RS485, CAN bus, 100M Ethernet RJ45 interface, LVDS interface, TFT-LCD interface, parallel printer port and digital I/O interface and so on. Besides, the drivers and the development cases in WinCE6.0 and Linux 2.6 help users with updating and replacing products quickly. The development board has passed the high and low temperature testing, to suitable for a variety of industrial application under the complex environment.
Feature
* CPU: Samsung ARM926EJS S3C2416, 400MHz industrial frequency
* 64mb ddr2 sdram
* 256MB NAND Flash
* Build-in 2D graphics acceleration video card, the resolution is up to 1024 x 768
* Support 4 RS232 DB9 Ports, 1 RS485 Port(optional)
* 4.3 / 7 inch TFT LCD
* Support PS/2 keyboard (optional)
* 1 parallel printer port (optional)
* 1 CAN 2.0 bus interface(optional)
* 1 SD 2.0 and 1-way MMC4.0
* Support booting from NAND Flash and SD
* Integrated package service( development board + data +LCD)
* Operating System: WinCE6.0 and Linux 2.6
* Optional module: Printer, WIFI, VGA
* Dimensions: Carrier board-161.93mm x111.13mm; CPU board- 40mm x 40mm
About Design Services
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
