Automatic Roll Embossing Equipment Model Yw-a-z

Posted at: Offers to Sell and Export | Posted on: Wednesday 27 March 2013 6:42 am | Poster last visit: Thursday 27 March 2014 |

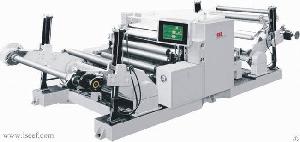

Product Photo:

roll embossing equipment yw z

Similar Products Catalog:
Products Photos Catalog Roll Embossing Photos Catalog

Product Description:

Automatic Roll Embossing Machine model YW-A-Z is automatic equipment with mechanical, electrical and



hydraulic system. It is suitable for embossing all kinds of paper and plastic film rolls into exquisite design. It adopts automatic hydraulic lifting system, automatic heating and cooling system, frequency converter to control speed, automatic tension control system and automatic hydraulic system etc.

Main Configuration

design roller

wool roller

Reducer

Inverter

air shaft

Tension control magnetic motor

Hydraulic lift

Plc

Technical Parameter

model YW-920A-Z YW-1150A-Z YW-1300A-Z

Max.embossing speed 5-60m/min 5-60m/min 5-60m/min

Embossing width 870mm 110mm 1250mm

Material available Paper, Plastic Paper, Plastic Paper, Plastic

Operation pressure 2-10Mpa 2-10Mpa 2-10Mpa

Heating temperature >200℃ >200℃ >200℃

Main motor power 32kw 34kw 34kw

Air pressure 0.8Mpa 0.8Mpa 0.8Mpa

Dimension(LxWxH) 4800x2800x1450mm 4800x3000x1450mm 48000x3200x1450mm

Net weight 5200kg 6200kg 7000kg
