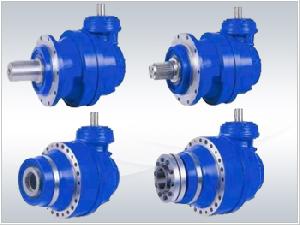

Bonfiglioli Ed 300 Series Right Angle Planetary Gearbox
Posted at: Offers to Sell and Export | Posted on: Monday 31 May 2010 1:59 am | Poster last visit: Monday 20 March 2017 |
Product Description:
Model: Right Angle gearbox
Torque: 1—450KN.m
Ratio: 3.4—5000
Overview
The installation and overall
dimension of planetary gearboxes are strictly designed in accordance with Italy and American manufacturers, so they can be completely interchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series and Dinamicoil RE, RA series on performance and connection dimensions. They are the ideal product to replace those Italian products.
Configuration
Mounting solution: flange mounted, foot mounted, shaft mounted
Features:
1. Torque Range: 1000 ... 1.100.000 Nm
2. Transmissible Mechanical Power: up to 450 kW
3. Gear Ratios: i=3, 4 ... 5.000
4. Gear Unit Versions
Right angle (with a spiral bevel gear set)
5. Output Configuration
Foot and flange mounted
6. Output shaft:
solid with key, splined, splined hollow, hollow with shrink disc
7. Input Configurations
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adaptors
Solid input shaft
8. Hydraulic Brake
Hydraulically released parking brake on request
9. Electric Brake: DC and AC type
Size Rated Output Torque Max. Output Power Max. Input Speed Ratio
Download
Nm KW rpm i PDF
200 1100 20 3000 3.4-2700
201 1700 30 3000 3.4-2700
240 2300 40 3000 3.6-2800
241 3700 50 3000 3.6-2500
280 5000 60 2500 3.6-2400
353 6000 72 2500 3.6-2400
354 8900 75 2000 4-2400
355 12500 90 2000 4-2400
428 15500 100 2000 4-2400
429 17000 110 2000 4-2400
445 19000 130 2000 4-2400
446 29000 155 2000 4-2100
542 36000 180 2000 4-2100
543 45000 200 1500 4.4-2000
695 82000 250 1500 4.4-1800
696 100000 270 1500 4.4-1200
*Different versions are also available on request.
*For more detail information, please feel free to contact us.
Company Contact:
Contact Name: Cathy
Company Name: Ningbo Bonny Hydraulics Transmission Co., Ltd
Email:
Tel: 86-0574-86879210
Fax: 86-0574-86877981
Street Address: No.36, The Third
Road Of Dagang, Beilun, Ningbo,
China 315800
Website: http://www.nbbonny.com
Member name: BonnyCathy
Country:
China
Member Since: 28 September 2009
Total Leads: 16 BonnyCathy Import Export Business Leads
Business focus: Hydraulic Motor, Hydraulic Winch, Planetary Gearbox, Slew Drive, Travel Drive
