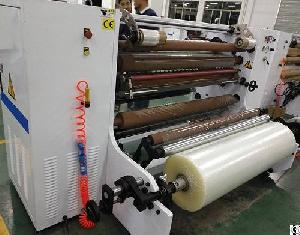

Bopp Tape Slitting Machine Manufacturers

Posted at: Offers to Sell and Export | Posted on: Tue 18 Dec, 2018 8:26 am |

Product Category: Main » Manufacturing Components and Supplies » Adhesives and sealants » Tape » Adhesive transfer tape » Bopp Tape Slitting Machine Manufacturers


bopp tape slitting machine manufacturers
Products Photos CatalogBopp Tape Slitting Photos Catalog



Model Slitting machine 1300

Four Shaft Automatic exchange Slitting machine 1600


Four Shaft Automatic

exchange

Roller width 1300mm

Effective width 1280 mm width jumbo roll 1620 mm width jumbo roll

Max. unwind diameter 800mm 800mm

Min. slitting width 24mm 24mm

Max. rewind diameter(shaft3") exchange 4 shafts 300mm

Could produce Max 1300meters lengt-h tape 300mm

Could produce Max 1300meters length tape

Machine Speed MAX 215meters/min MAX 215meters/min

I.D.of paper core 3”  (76mm) 3”  (76mm)

slitting blade 0.2x22x60mm 0.2x22x60mm

Main machine power 10HP 10HP

Transducer Mitsubishi Japan Mitsubishi Japan

Main Motor AC7.5HP Dongyuan Taiwan AC7.5HP Dongyuan Taiwan

Touch Screen 7” Touch panel XinJie brand 7” Touch panel XinJie brand

PLC Siemens  Germany Siemens  Germany

Steel plate 32 mmthickness, super-grinding machi-ning finish 32mm thickness, super-grinding machi-ning finish

Machine weight 2000KG 2000KGMINI REWINDING MACHINE  1 SET

48mm width mold 1 set

Features:

1) Full-Automatic four-shaft exchange

2) PLC control system with touch panel operation.

3) Automatic screw roller system used for collecting the waste edge

4) Automatic labeling

5) Automatic loading jumbo rolls.Loading and Unloading jumbo rolls is easy and convenient.
