Processing ability: 30-160t/h
Max feeding size: 800mm
Product Fineness: 0-50mm
Range of application:
Almost all minerals, such as quartz, feldspar, mica, calcite, gypsum, fluorite, limestone, soil, clay, marble, granite, pebble, coal, slag, iron ore, copper ore, manganeseore, refractory material, glass, etc.

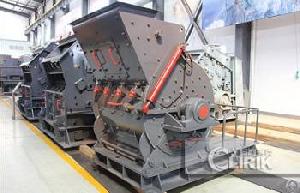

Brief Introduction of Cabinet hammer crusher:
Cabinet hammer crusher with feature of large feeding space, it is very suitable for processing big raw material with size 450-1400mm to small granularity below 100mm, which are widely used for mine, cement, building material, chemical industry and so on. It is suitable for crush raw materials with compression strength not more than 200Mpa, such as limestone, rock, plaster, coal gangue etc.
Working principle of Cabinet hammer crusher:
In cabinet hammer crusher gravity, hammers do high-speed circular motion along with rotors driven by motor.
After being fed into crusher, large stones are stacking on the shelf which is particular to box crusher. Raw materials are smashed into smaller pieces by hammers. Right following the fist crushing, unqualified pieces hit against the impact plate with new fed material at a tangent to circular motion of Hammers. So once for all, material undergo two steps of crushing, from coarse to medium size then to qualified small size. Finished product are sieved through screen and discharged at a uniform particle size.
Benefit of Cabinet hammer crusher
1.Large feeding size, high crushing ratio, uniform particle size, 2.The finished size can be adjusted, high productivity.
3.Durable hammers, turning type cabinet, easy maintenance.
4.Coarse and medium reduction in one time, which simplified sand-making process.
