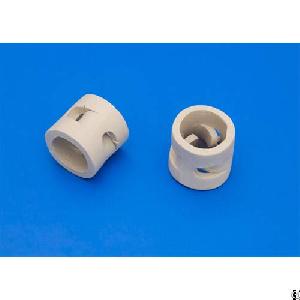

Ceramic Pall Ring
Ceramic pall ring technical data
SiO2 Al2O3 SiO2+Al2O3 Fe2O3 CaO MgO K2O+Na2O Other
>70% 15-23% >92% <1% <0.25% <0.2% 2-4% <1%
Name Specifications Diameter×high ×thick Surface area Void volume Number/volume Drying packing factor
mm mm×mm×mm M2/m3 % n/m3 m-1
Pall ring 25 25×25 238 68 54000 565
38 38×38 150 75 13400 365
52 50×50 115 78 6800 252
80 80×80 98 80 1930 146
Ceramic Random Packing, Is widely used in the scrubbing tower, dry tower, absorb tower, colling tower, those are used in chemical, metallurgical, gas, oxygen, medicine, acid, fertilizer and so on.
Advantages: excellent acid resistance and heat resistance. it can resist to corrosion of various inorganic acid, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature condition.
Pall Ring, the structure improve distribution of gas-liquid and its efficiency can be improved above 50%, and only has half of pressure drop compared with Raschig ring.
Features: Pall ring has some advantages, such as lower pressure drop, big flux, high efficiency, which HYPAK packing has better efficiency and lower pressure drop and better distribution of liquid compared with common pall ring.
