Ceramic Raschig Ring

Posted at: Offers to Sell and Export | Posted on: Fri 30 Nov, 2018 2:32 am | Product Category: Structured packing [24]

ceramic raschig ring
Products Photos CatalogCeramic Raschig Ring Photos Catalog

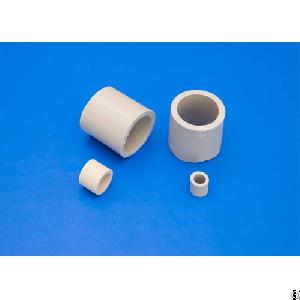

Ceramic Raschig Ring

Ceramic Tower Packing


raschig ring packing, super raschig ring

Specification:

Ceramic

raschig ring technical data

Chemical Composition:

SiO2 Al2O3 SiO2+Al2O3 Fe2O3 CaO MgO K2O+Na2O Other

>70% 15-23% >92% <1% <0.25% <0.2% 2-4% <1%

Technical  specification

Name Specifications Diameter×high ×thick Surface area  Void volume Number/volume Drying packing factor

    mm mm×mm×mm  M2/m3 % n/m3 m-1

Rashig ring 15 15×15 330 70 250000 960

25 25×25 190 78 49000 400

50 50×50 93 81 6000 305

100 100×100 70 70 1000 170

Advantages:

Ceramic Random Packing,  Is widely used in the scrubbing tower, dry tower, absorb tower, colling tower, those are used in chemical, metallurgical, gas, oxygen, medicine, acid, fertilizer and so on.

Advantages: excellent acid resistance and heat resistance. it can resist to corrosion of various inorganic acid,  organic acids and organic solvents except hydrofluoric acid,  and can be used in high or low temperature condition.

Raschig Ring: Raschig ring is the oldest type of  chemical packing as a mass transfer media,  is widely used as catalyst support.

Features: Simple structure
