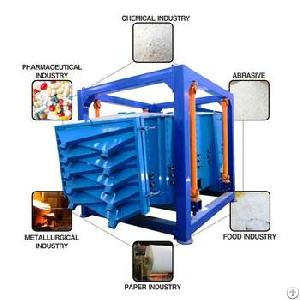

Square swinging screen is also called reciprocating screen, if see from the motion trail
of screen box. The vibratory force produced by its driving device is the inertial force twining along the dead axle, the direction of which is change according to a certain regular. The essence of square swinging screen is the reciprocating inertial force formed by the rotation of eccentric wheel winding the dead axle. According to the structure characteristics and working principle of swinging screen, the screen surface is arranged with level or incline (angle of inclination is 0-5 degree). After turn on the swinging screen, the screen box take reciprocating movement under the inertial force, screen box drives screen surface to make periodic shaking, which makes the materials on the screen surface to make directional jumping movement with the screen box. During the period, the material less than the screen aperture falls to under layer, the material bigger than the screen aperture make jumping movement, discharged from the coarse outlet.
Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, medicine powder, granules.
Food industry: sugar powder, starch, salt, rice, milk powder, egg powder, sauce, syrup.
3. Metallurgy, Mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder.
4. Medical industry: all kinds of medicine
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active car
1) No vertical vibration, longer life span of mesh (6 – 12 months).
2) Less conveying equipment is required for elevating material to the feed point.
3) All components are easily accessible and removable for ease of disassembly and cleaning.
4) Every layer is installed with an anti-blocking and cleaning facility, which is able to clean mesh while sieving.
5) Lower headroom permits operation in confined areas, reducing cost of building and maintenance.
6) Exterior is designed for easy cleaning. Exterior permanent joints are either welded continuously, or strip welded and filled with epoxy.
7) ISO9001:2008 certificated.
