Cnc Spring Machine With With Length Gauge

Posted at: Offers to Sell and Export | Posted on: Tuesday 19 July 2011 1:14 pm | Poster last visit: Thursday 23 October 2014 |

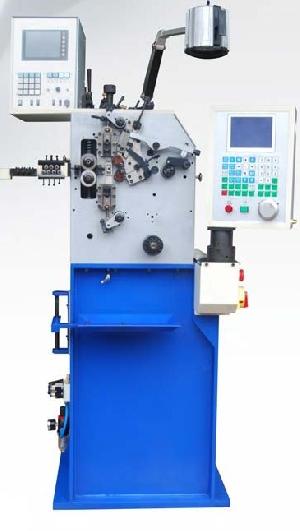

Product Photo:

cnc spring machine gauge

Similar Products Catalog:
Products Photos Catalog Cnc Spring Machine Photos Catalog

Product Description:

compression spring machine TR-208 with Length gauge

Withe the length gauge, it can detect spring length


and can automatic correct the lenght of spring, check out the defective product.

Specification of length gauge

working speed with slot 200pieces/min

without slot 600pieces/min

Length 0.01-5994MM

Scale 0.01-999MM

allowance

H2/L2 5 scale(MAX)

1 scale(MIN)

H1:H2 1/2 scale(Max)

L1:L2 1/2 scale(max)

H1/L1 1/2scale(Min)

Precision 0.005MM

Mini setting 0.001MM

LCD screen 128*72MM

temperature 0-45degree

Power AC115V or AC230V+/-10%

Max load 100W

Weight 22KG

size 37*20*30CM

TR-208 spring roll machine is a two-axis computerized spring roll machine consisting of wire feeding axis and cam axis.

The two axes can work independently or synchronously by means of the program.

The space, outside diameter and cutting tools are driven by the cam motor. The wire feeding is driven by independent feeding motor.

The cutting tools can be adjusted by the cabinet's inside and outside easily and quickly.

This spring machine can manufacture various compression springs, oil seal springs, battery springs etc.

Optional accessories:

Torsion device, oil seal device, prize-up device, length gauge

Specification for Spring machine

Model TR-208

Wire diameter 0.1-0.8MM

Max Out diameter 20MM

Max produce speed 550pca/min

Send line length unlimited

Send line speed 1200m/min

Wire feed axis Y axis 1KW

Cam axis X axis 1KW

LED screem color/chinese/english

Max instruction value X:359.9 Y:9999.9MM

Min instruction value X:0.1 Y:0.01MM

Instruction carring capacity 150programs Max.999 lines for each program

Machine size 900*850*1600MM

Package size 1000*1000*1700MM

Net/gross weight 380/420KG

Power 200V 3P 50/60HZ
