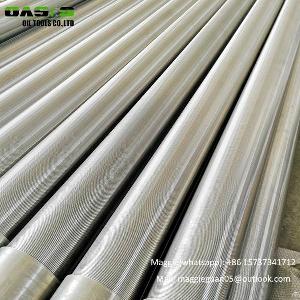

Continuous Slot Wedge Wire Wound Screens

Posted at: Offers to Sell and Export | Posted on: Fri 01 Nov, 2019 3:06 am | Targeted Countries: Netherlands | New Zealand | Oman Product Category: Filter mesh [206]

slot wedge wire wound screens
Products Photos CatalogSlot Wedge Wire Wound Photos Catalog



Chemical and thermal resistant — A variety of corrosion resistant stainless steel materials and many



exotic alloys suitable for high temperatures and pressures. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly. Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Applications

water treatment

Technical Data

Slot size (mm): 0.10, 0.15, 0.2, 0.25, 0.30-3, also custom sizes to meet specific requirements.

Open area: up to 60%.

Material: Low Carbon, Low Carbon Galvanized steel (LCG), Steel treated with plastic spraying and Stainless Steel Steel( 304, 304L, 316, 316L, etc.).

Length: up to 6 meters.

Diameter: from 25 mm to 1200 mm
