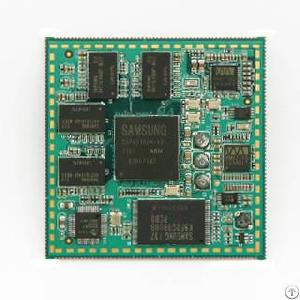

Cortex-a8 Embedded System On Module Cm210-iii
Posted at: Offers to Sell and Export | Posted on: Friday 10 January 2014 6:57 am | Poster last visit: Tuesday 10 February 2015 |
Product Description:
The Boardcon system on module CM210-III is designed for communication, healthcare, automation, transportation,
multimedia advertising, high performance POS machine, and surveillance applications with a Custom base board.
Board Dimension
* Board size: 59.9mm x 61.55mm
* Pin to Pin space: 1mm
* Stamp Hole: 0.8mm
* Pin number: 230pins
* Layer: 8 Layers, complying with EMS/EMI
Feature
* CM210-III Development Board : EM210
* Processor: Samsung ARM Cortex-A8 S5PV210, up to 1GHz
* ddr: 512mb ddr2
* NAND Flash: 256MB SLC or MLC NAND Flash
* Built-in NIC, AC97
* pmic: wm8310
* Preinstalled Android4.0
* Power supply: 5V
* The modular is led out most signals of S5PV210, such as 10/100 Ethernet port, USB HOST, USB OTG, UART, HS-SPI, IIC, RTC, EXTINT, Audio I/O, HDMI and so on.
* Application: MID, POS, PND, and Terminal controller
About Design Services
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
Company Contact:
Contact Name: Woo
Company Name: Boardcon Technology Limited
Email:
Tel: +86-755-26481393
Fax: +86-755-27571552
Street Address: Room702, Xinan
Business Building, 45zone, Baoan
District
Shenzhen, Guangdong 518133
China
Member name: Boardcon
Country:
China
Member Since: 06 January 2014
Total Leads: 35 Boardcon Import Export Business Leads
Business focus: Single Board Computer, Som, Embedded Design
Chat:
Verify: Safe Import Export Tips
