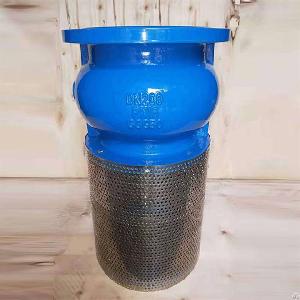

DI Foot Check Valve
Pump foot valve is also one type of check valve, which is vertically
installed at the bottom of the pump pipe to prevent the water back flow and keep water level. Prosper Flow can design and manufacture the foot valve according to standard of BS5153 with sizes of 2~12 (DN50~DN300mm).
What is the function of a foot valve?
A Well Piping Foot Valve is a one way or anti-siphon valve which is installed on the pick-up end of the water pipe near the bottom of the well. The foot valve prevents water from flowing backwards out of the jet pump and well piping back into the well when the jet pump stops operating.
· Vertical structure design
· Stainless steel screen
· Rubber coated disc
· Design & manufacturing: BS5153
· Flange ends: EN1092-2, ASME B16.1/B16.42, AS4087
· Inspection & testing: EN12266
3. technical specification
· pn10 / pn16 / 125lb / 150lb / jis10k / 150psi / 200psi
· Size: 2″~12″ (50~300mm)
· Materials: Ductile iron (GGG50, GJS500, DIN1693, BS EN1563, ASTM A536 65-45-12)
· Epoxy coating with thickness ≥ 250μm
· Working temperature: 0℃~+80℃
Foot check valve suppiler:Anhui Prosper Flow Technology Co., Ltd.
· Water supply, sewage treatment industry
· Fire fighting industry
· Real estate industry
· Mining, steel industry
· Metallurgy plant, power plant
· Oil, chemical industry
· Textile, pharmaceutical industry
visit website Anhui Prosper Flow Technology Co., Ltd is a high-tech enterprise specializing in R&D, production and sales of valves and fittings.we understand the international standards and strict export quality requirements of ductile iron valves. We provide OEM services for the world-famous valve companies. Our valves cover British Standard (BS), German Standard (DIN), American Standard (AWWA), Australian Standard (AS), South African Standard (SABS) and National Standard (GB). Now it has its own valve logo ZW. We have Gate Valve, Check Valve, Butterfly Valve, Air Valve and Water Meter.
