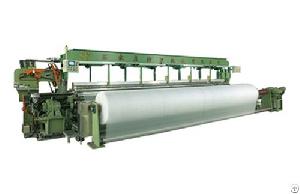

Dw100 Wide Rapier Loom
Posted at: Offers to Sell and Export | Posted on: Saturday 22 June 2019 2:04 am | Poster last visit: Saturday 22 June 2019 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Textile and fabric machinery and accessories
» Textile working machinery and equipment and accessories
» Textile turning machine
» Dw100 Wide Rapier Loom
Product Description:
DW100 Wide Rapier Loom, common forming fabric polyester fabric loom, Air Slide Belt Loom
common forming
fabric polyester fabric loom
Air Slide Belt Loom
This machine is mainly suitable for weaving paper-making woven press felt, filter cloth used in mine, wide geotextile, wide glass fiber cloth, such as wide canvas fabric.
1、Range of weft wires and warp wires: Ply monofilament, ply yarn, glass fiber, wire mesh and other wires
2、Fabric Weight: 800g-1000g/㎡
3、Reed Width: 5000-13000mm
4、Designed Speed: 45rpm.
5、PLC control Air Slide Belt Loom Power: about 15kw.
6、Beating-up Force: Not less than 1000kg/m
1、The main wallboard: adopting iron box structure, the complete machine installed on the basement.
2、Main Drive: Adopting bilateral motor and pneumatic clutch two-sided coaxial drive.
3、Shedding: Single side -drawing dobby, 10 pieces of heald frames.
4、Weft Insertion: Servo motor drive, rapier insertion.
5、Beating-up: Multi-segment combined crank four-linkage weft beating.
6、Take up Mechanism: Servo motor drive, three rollers positive take up.
7、Let off: Servo motor drive, single warp beam let off.
8、Fabric Rolling : cylinder drive, external fabric rolling system.
9、Lubrication system: The complete machine is lubricated with automatic grease lubrication and hand pump centralized oil lubrication.
10、integral fire retardant core Loom Controlling System: With OMRON PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.
