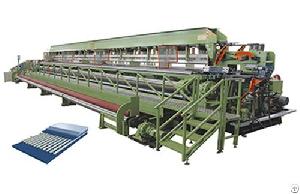

Dw200 Heavy Duty Ring Woven Press Felt Loom
Posted at: Offers to Sell and Export | Posted on: Saturday 22 June 2019 1:55 am | Poster last visit: Saturday 22 June 2019 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Textile and fabric machinery and accessories
» Textile working machinery and equipment and accessories
» Textile turning machine
» Dw200 Heavy Duty Ring Woven Press Felt Loom
Product Description:
DW200 Heavy Duty Ring Woven Press Felt Loom, Paper Machine Clothing Loom Factory, Paper Making Rapier
Loom Supplier
Paper Machine Clothing Loom Factory
Paper Making Rapier Loom Supplier
This is applicable to weave high-strength paper making woven press felt with true selvage, especially for ring woven press felt.
1、Range of Polyester
2、Weft density: 50～360 picks/10cm.
3、Warp density: 60～180 ends/10cm.
4、Reed Width: 10m-20m.
5、Economic Speed: 25-30 rpm.
6、Motor power: about 40KW.
7、Weight: About 80T.
1、Framework: The main wallboard adopting iron box structure, the complete machine installed on the whole basement.
2、Dryer Fabric Paper Making Rapier Loom Main Drive: Adopting bilateral motor two-sided coaxial drive, motor power is 11KW, double pneumatic clutch and the main driving box adopts ellipse gear variable.
3、Shedding Mechanism: Adopting bilateral broda blade side-drawing dobby device, 12 heald frames.
4、Weft Insertion Mechanism: Adopting hydraulic picking mode, two-sided 2×2 shuttle box shuttle-changing weft selector.
5、Beating-up Mechanism:Adopting multi-fissions combined crank four-linkage variable speed weft beating.
6、Take-up Mechanism: Adopting electronically control three-roller positive take-up, the upper rollers are separately driven by servo motor.
7、Let-off Mechanism: Adopting external central positive let-off (single warp beam, flange-separating warping).
8、Web-rolling Mechanism: Adopting external superficial web rolling driven by independent torque motor.
9、Lubricating System: The high-density Paper Making Rapier Loom adopts automatic grease lubrication and hand oil lubrication.
10、Controlling System: With OMRON PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.
