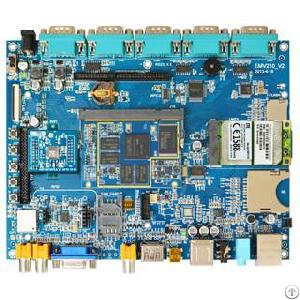

Embedded Development Board
Posted at: Offers to Sell and Export | Posted on: Tuesday 1 April 2014 3:32 am | Poster last visit: Tuesday 10 February 2015 |
Product Description:
EM210-I is the latest high-performance embedded development board designed by BOARDCON, which is based
upon Samsung S5PV210AH-A0 ARM Cortex-A8 Core and supports system memory up to 512MB DDR2. To satisfy the requirement from various industrial & embedded applications, EM210-I also comes with multi-size LCD: 4.3/7/10.1 inch TTL LCD, Cap-touch panel.
Compared with EM210, EM210-I is more perfect function. In addition to general interface such as HDMI, USB OTG / HOST, Ethernet and Video, EM210-I also has Dual Audio-Codec, MIPI, T-Flash, Sam card slot and SIM card slot. Besides, it supports Camera, RFID, GPS, WIFI and WCDMA modules. Both Android2.3 and Android4.0 can run on the platform. Additionally, EM210-I supports three kinds of boot mode: NAND Flash, USB OTG and SD card.
EM210-I is modular in design, the CPU board connect to the carrier board with individual SO-DIMM200 or B2B interface. It is easy to upgrade and maintain. With these incredible capabilities and features, the platform helps users to deploy more responsive, high-performance, low-power, or even cost-effective systems, it is excellent for industrial automation, gaming, medical devices, self-serve terminal, and signage markets.
Feature
* Processor: Samsung ARM Cortex-A8 S5PV210AH, up to 1GHz
* RAM: 512MB DDR2 RAM, Samsung K4T1G164QF
* Flash: 256MB SLC NAND Flash, Samsung K2F2G08
* Android4.0 OS
* 5 Serial ports, DB9 connector
* 1 RS485 interface
* 2.0 usb otg/host
* 2 Camera interfaces
* 4 CVBS input
* SD, T-Flash, Audio I/O, HDMI, TV_OUT, VGA, Ethernet
* 13.56M RFID module, support Mifare one S50 card/SAM card
* 4.3/ 7/10.1 inch TTL LCD
* Optional module: Camera, RFID, GPS, WIFI, WCDMA
* Dimensions: Carrier board-193.5mm x 148.5mm; CPU board- 67.6mm x 47.6mm
About Design Services
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
Company Contact:
Contact Name: Woo
Company Name: Boardcon Technology Limited
Email:
Tel: +86-755-26481393
Fax: +86-755-27571552
Street Address: Room702, Xinan
Business Building, 45zone, Baoan
District
Shenzhen, Guangdong 518133
China
Member name: Boardcon
Country:
China
Member Since: 06 January 2014
Total Leads: 35 Boardcon Import Export Business Leads
Business focus: Single Board Computer, Som, Embedded Design
Chat:
Verify: Safe Import Export Tips
