F-53507-0100.t6ar Rubber Extrusion Gearbox Use Tandem Roller Bearing
Posted at: Offers to Sell and Export | Posted on: Wednesday 5 July 2023 12:58 am | Poster last visit: Sunday 17 March 2024 |
Product Category: Main
» Manufacturing Components and Supplies
» Bearings and bushings and wheels and gears
» Bearings
» Thrust roller bearing
» F-53507-0100.t6ar Rubber Extrusion Gearbox Use Tandem Roller Bearing
Product Description:

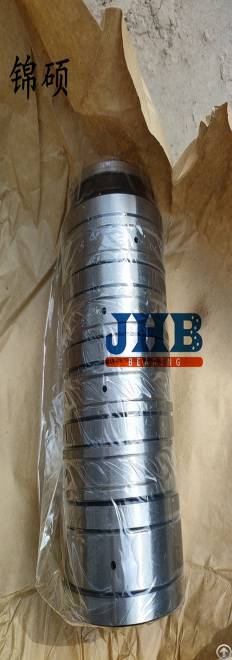

F-53507-0100.T6AR Rubber extrusion gearbox use tandem roller bearing
Bearing factory Number F-53507-0100.T6AR
Bearing
Item code f-53507-0100.t6ar
Inner diameter d Standard size, offer drawing to confirm
Outer diameter D Standard size, offer drawing to confirm
Total height B Standard size, offer drawing to confirm
weight(kg) Standard
Cage type Steel or Brass Standard Cage
Precision grade Standard precision grade
Bearing Material GCr15 bearing steel
Description Tandem cylindrical roller thrust bearing
UPC/HS code 8482500090
T6ar
The Axial Forces Are Supported By A six -Stage Tandem Bearing T6AR Combined With An Axial Cylindrical Roller Bearing
application Tandem bearings have proven effective principally in gearboxes for single and twin screw extruders in the rubber and plastics industry.
Other possible applications include:
deep hole drilling equipment
friction welding machines.
T.AR tandem tandem thrust bearing is a thrust bearing that supports load in a single direction:
It consists of two to eight thrust cylindrical roller bearings arranged in series, and has a middle ring. The elastic diaphragm system can evenly distribute the force to each thrust cylindrical roller bearing. The roller is a tried-and-tested cylindrical roller in the product catalog. Cylindrical rollers are guided by cages. Cages are made of brass, aluminum or nylon. Bearing rings and spacers are made of hardened steel. For high performance types, bearing rings made of high performance steel are used. The speed, permissible temperature range and design details of the T.AR series series thrust bearings can be found in the quotation drawing.
F-53507-0100.T6AR Tandem bearing has the following structural types:
Basic type tandem bearing FIG. 2 is connected with the shaft ring, seat ring and roller cage assembly by elastic spacers. This type of bearing is separable structure, parts can be detachable, it must be carefully installed and disassembled in accordance with the numbering order provided by our company
FIG. 3 Serial bear
Company Contact:
Contact Name: Jason Yang
Company Name: Luoyang Jinshuo Precision Bearing Co., Ltd
Email:
Tel: 86-18625796911
Fax:
Street Address: Yiyang Bearing
Industrial Park
Luoyang, Hennan 471000
China
Website: https://www.lyjhbearing.com
Member name: jinshuobearing
Country:
China
Member Since: 03 May 2023
Total Leads: 132 jinshuobearing Import Export Business Leads
Business focus: Series Bearing Extruder Bearing Rotary Bearing Spindle Bearing, Slewing Bearing
Chat:
Verify: Safe Import Export Tips
Bearing factory Number F-53507-0100.T6AR
Bearing
Item code f-53507-0100.t6ar
Inner diameter d Standard size, offer drawing to confirm
Outer diameter D Standard size, offer drawing to confirm
Total height B Standard size, offer drawing to confirm
weight(kg) Standard
Cage type Steel or Brass Standard Cage
Precision grade Standard precision grade
Bearing Material GCr15 bearing steel
Description Tandem cylindrical roller thrust bearing
UPC/HS code 8482500090
T6ar
The Axial Forces Are Supported By A six -Stage Tandem Bearing T6AR Combined With An Axial Cylindrical Roller Bearing
application Tandem bearings have proven effective principally in gearboxes for single and twin screw extruders in the rubber and plastics industry.
Other possible applications include:
deep hole drilling equipment
friction welding machines.
T.AR tandem tandem thrust bearing is a thrust bearing that supports load in a single direction:
It consists of two to eight thrust cylindrical roller bearings arranged in series, and has a middle ring. The elastic diaphragm system can evenly distribute the force to each thrust cylindrical roller bearing. The roller is a tried-and-tested cylindrical roller in the product catalog. Cylindrical rollers are guided by cages. Cages are made of brass, aluminum or nylon. Bearing rings and spacers are made of hardened steel. For high performance types, bearing rings made of high performance steel are used. The speed, permissible temperature range and design details of the T.AR series series thrust bearings can be found in the quotation drawing.
F-53507-0100.T6AR Tandem bearing has the following structural types:
Basic type tandem bearing FIG. 2 is connected with the shaft ring, seat ring and roller cage assembly by elastic spacers. This type of bearing is separable structure, parts can be detachable, it must be carefully installed and disassembled in accordance with the numbering order provided by our company
FIG. 3 Serial bear
