Fax / Atm / Pos / Thermal / Carbonless Paper Roll Slitter Rewinder

Posted at: Offers to Sell and Export | Posted on: Fri 29 May, 2009 7:27 am |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Industrial process machinery and equipment and supplies » Paper making and paper processing machinery and equipment and supplies » Slitters » Fax / Atm / Pos / Thermal / Carbonless Paper Roll Slitter Rewinder

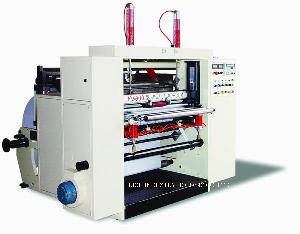

Product Photo:

atm pos thermal carbonless paper roll slitter rewinder

Similar Products Catalog:
Products Photos Catalog Atm Pos Thermal Photos Catalog

Product Description:

This series machine is one professional machine with multifunction and manufactured utilizing Japanese


technology and widely used to process large paper roll into fax paper roll and all kinds of commercial receipt small rolls such as NCR roll, ATM roll, electronic cash register roll, ticket roll, etc. Different size of small roll can be produced by using this machine.2- ply paper roll also can be processed by this series of machine.

Model:RCHM-FQ500F/S-2P

Technical parameters

Fed-rolls: 2 rolls

Max.Width of Unwinding: 500mm

Max.Dia Of unwinding:750mm

Min.width of slitting: 25mm

Diameter of unwinding paper core: 76mm(3inch)

Max.Dia of rewinding:80mm

Reference diameter of rewinding paper core: 12mm-36mm.(availabe in custom-design inner core diameter)

Max.Speed of slitting:100M/Min

Power:2.2kw

Power supply: 3P 380V/50HZ

Air supply: compressed aire 0.6MPa

Dimension: 2700mm*2200mm*1900mm(L*W*H)

Features:

1.Mitsubishi PLC control system makes the process of color mark reading precisely and easily. 2way counter of color marks reading and length measurement

2.Key press/touch screen operational panel makes operation simple and reliable.

3.Multifunctional self-diagnosis system ensures the maintenance conveniently and rapidly.

4.Full-auto Mitsubishi tension control and detecting system ensures the high presion of slitting process.

5.Main control system adopts Mitsubishi electrical control system to ensure the safety and stabilization of operation.

6. Color marks matching on 2 ply automatically and precisely, totally avoid carbonless paper rubbing during processing.

7.Automatic paper roll lift and auto tucker

Model:RCHM-FQ500-1P

Max.Diameterof unwinding paper:1000mm

Max.width of unwinding paper:500mm

Paper core:3inch

Slitting method: shear cutting.

Slitting power:1.5KW(added transducer)

Slitting knife spacer:20 pcs for each 1.0mm/1.5mm

Slitting speed:150M/Min

Paper stand:Air expansion shaft/air pressure type

Tension control and detector:Mitsubishi

Rewining paper core diameter rang:12mm-38mm (availabe in custom-design inner diameter)

Max.Rewinding diameter:200mm( available in custom-design rewinding diameter)

Counter:1group *2 way

Automatic paper tucker:pneumatic type

Operation:Mitsubishi PLC control system

Banana roller:3-5mm adjustable radian

>endr mark printing device:1set

Compressed air :0.6Mpa

Dimension:2350(L)*2200(W)*1900(H)mm

Features:Same as FQ-900-1Pslitter rewinder, it is used to slit rewind lottery and fax thermal paper rolls.

FQ500sereis of slitter rewinder is used to slit rewind all kind of cash register roll, ATM roll, receipts, credit card slip and various of plain or printed small rolls.

Model:RCHM-FQ900-1P

Main Specification:

Max. Unwinding width:900mm

Max. Diameter of unwinding: 1000mm

Min. Width of slitting: 25mm

Diameter of paper core of unwinding:76mm

Max. Diameter of rewinding roll:200mm (availabe in custom-design rewinding diameter)

Inner diameter of paper core of rewinding: 12mm-38mm (availabe in custom-design inner diameter)

Max. Speed of slitting: 150m/min

Counter:1group *2 way

Automatic paper tucker:pneumatic type

Main power: 2.2kw

Power: 3P /380V/50HZ

Pneumatic system: compressed air 0.6MPa

color marking device: 1 set (optional)

Dimension:2350(L)*2200(W)*1900(H)mm

Net weight: 1800kg



Company Contact:

Richmachine photo
Contact Name: Cindy Wu
Company Name: Rich Industry Holding Co., Ltd
Email: Email
Tel: 86-20-85854295
Fax: 86-20-82571135
Street Address: Huangshixi
Road 456, Guangzhou, China
Website: http://www.richmachine.cn
Member name: Richmachine
Country: China-CN China
Member Since: 16 June 2008
Total Leads: 112 Richmachine Import Export Business Leads
Business focus: Paper Sheeter, Paper Roll Slitter Rewinder, Continuous Bills Printing, Making Machine, Offset Printing Press
