Five Axis Cnc Plasma Pipe Bevel Cutting Machine For Sale

Posted at: Offers to Sell and Export | Posted on: Mon 11 Mar, 2019 5:59 am |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Metal cutting machinery and accessories » Metal cutting machines » Plasma cutting machine » Five Axis Cnc Plasma Pipe Bevel Cutting Machine For Sale

five axis cnc plasma pipe bevel cutting machine
Products Photos CatalogFive Axis Cnc Plasma Photos Catalog

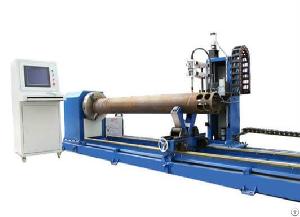

5 Axis CNC Plasma Pipe Bevel Cutting Machine For Sale


1.Professional control system for various

types of cuts, including tees, miters, saddles, centerline offsets, multiple intersections, elbow supports, gusset slots; round, rectangular, saw cut, overlapping pipe holes, re-pads with axial offsets and baseline or work point offsets, and other types of intersecting cuts.

2. Precise casting parts and strict manufacture and test procedures ensure high accuracy, reliability, and durability.

3.Integrated with specialized programming and computing modules for complicated large steel structure construction, it can generate CNC codes from Auto CAD drawings to save operators’ and engineers’ time. And these modules are compatible with IGES, DXF, SAT and STL files.

4. Automatic, servo driven height sensing system compensates vertical position for the out-of-round pipe. In-feed and out-feed conveyors available for loading/unloading.

5.3D operating interface for easy operation.

6. Six CNC axes(Left/Right, Front/Rear, Up/Down, Rotation, Torch-Twisting, Torch-lifting) perform cutting pipe profile.

Technical parameters

Item Specification

pipe diameter Φ50~Φ300 mm

pipe length 6 m(can be customized)

Work-piece ellipse ≤2%

Number of control axes 5 axes

Torch lift stroke max.300 mm

Cutting speed 10-2000 mm/min

Moving speed 10-6000 mm/min

Axial swing angel of cutting torch α=±45°

radial swing angel of cutting torch β=±45°

Plasma cutting thickness Upon actual plasma source

Positioning accuracy ±0.2mm

Ambient temperature -10 º C ~ 45 º C

Ambient Humidity less than 95%, no condensation.

Power supply 380VAC, 50Hz, fluctuation is less than ± 10%

Company Contact:

No member photo
Contact Name: Rick Jeesun
Company Name: Jinan Jeesun Cnc Machinery Co., Ltd
Email: Email
Tel: +86-13046001147
Street Address: Licheng District
Jinan, Shandong 250000
Website: https://www.cnclaserengraver.com
Member name: Jeesuncnc
Country: China-CN China
Member Since: 11 March 2019
Total Leads: 12 Jeesuncnc Import Export Business Leads
Business focus: Cnc Router, Cnc Laser Marker, Cnc Laser Engraver, Cnc Laser Cutter, Cnc Plasma Cutter
