Flip Chip For High Bay

Posted at: Offers to Sell and Export | Posted on: Wednesday 26 February 2020 3:29 am | Poster last visit: Monday 20 April 2020 |

Product Category: Main » Electronic Components and Supplies » Discrete semiconductor devices » Diodes » Light emitting diodes LEDs » Flip Chip For High Bay

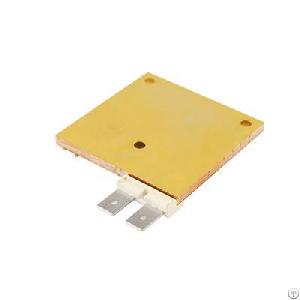

Product Photo:

flip chip bay

Similar Products Catalog:
Products Photos Catalog Flip Chip Bay Photos Catalog

Product Description:

Gt-fc300-1.1

Flip Chip for High Bay


High Bay Lights LEDs Flip Chip

Gt-fc300(sp1010)

Power:FC60-300W

Luminous

area:13.48*13.48mm

RoHS compliant

5 Years Warranty

High CRI COB LED Chip Description

High Reliability and Stability

Ceramic base with flip chip mounted, no gold wire bonding

High heat conductivity red copper substrate

High temperature eutectic welding technique

Reliable raw materials applied with super fast heat transfer

Patented phosphor coating techonology

Outstanding Projecting Performance

High power & lux density with super even light distribution

Minimum distance in-between China Flip Chip for High Bay to achieve surface emitting effect

Extremely small LES optimized for focused lighting purpose

Flexible Application Features of High Stability Flip Chip

Equipped with temperature sensor and quick connector

A wide power range from 10W to 800W optional

High Bay Light Flip Chip Application: stage light, projector, searchlight and long-distance lighting applications, etc

Product Specification

Product Type LES

(mm) CCT

(k) cri  φ

(lm) Power

(w) vf

(v) if

(A) Chip Array

Gt-fc60x3-1.1 6.66*6.66 8000-8500 70 4500-5000 60 15-19 3.75 sp0505

Gt-fc90x3-1.1 6.66*6.66 8000-8500 70 6300-7200 90 15-19 5.5 sp0505

Gt-fc150x3-1.1 9.64*9.64 8000-8500 70 10000-12000 150 21-25 6.7 sp0707

Gt-fc300x3-1.1  13.48*13.48 8000-8500 70 20000-22000 300 30-36 10 sp1010
