FRP Storage Tank Description
Runto New Materials provides a wide range of solutions for storing fluids
or solids. These solutions are made of all FRP materials or double-layer laminated materials. The choice of materials makes Runto New Materials' storage tanks easy to install in different environments. Based on experience, we know that every application has its specific requirements. Runto New Materials' storage solutions include detailed engineering, manufacturing, transportation and installation of all components.
Runto New Materials' FRP and double-layer laminated storage solutions are designed to comply with all international standards such as DIN, AD N1, ASME, RTP-1 and ISO.
FRP vessels can be divided
1. By shape:
Horizontal FRP Vessel
Horizontal FRP vessel, also called horizontal FRP tank, is a device composed of an impermeable and corrosion-resistant inner layer, a solid structural layer, an anti-aging outer layer, a head, a nozzle, and a saddle.

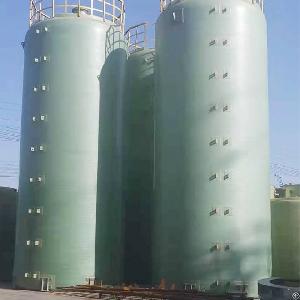

Flat Bottom FRP Vertical Vessel
Flat Bottom FRP Vertical Vessel is manufactured by Italian technology. The inner bladder is injection molded, and the resin content of the inner bladder resin layer is 95%. The lining resin content is 80%. The inner bladder of the tank adopts a syringe mold, the straight section of the tank body is seamlessly connected with the upper head, and the structural layer of the tank body is integrally wound. The storage tank has light weight, high strength, strong corrosion resistance and long service life.
2. By manufacturing method:
Shop vessel (within DN 4m), on site vessel (DN 4m - 25m), including FRP vessels combined with PVC, CPVC, PP, PE, PVDF, etc.
3. By application:
Chemical storage, reaction kettle, scrubbing tower, spray tower, food fermentation, ultrapure water
Characteristics of FRP Storage Tanks
1, light weight, high strength: relative density between 1.5 and 2.0, only carbon steel 1 / 4 to 1 / 5, but the tensile strength is close to or even more than carbon steel, and specific strength can compared with high-grade alloy steel.
2, good corrosion resistance: the atmosphere, water and the general concentration of acid, alkali, salt, and a variety of oils and solvents have better resistance.
3, excellent electrical properties: can be used to manufacture the insulator.
4, excellent thermal performance:
5, excellent technology: according to the shape of the product, technical requirements, the use of flexible selection of molding process; process is simple, can be a one-time molding, economic effect is outstanding.
Application range of FRP Storage Tanks
1. hydrochloric acid, sulfuric acid, phosphoric acid, nitric acid, organic acid, hydrofluoric acid, fluoride, saline, sewage etc.;
2. food grade (vinegar, soy sauce, water, etc.);
3. polyvinyl chloride (FRP/PVC), polypropylene (FRP/PP), etc.
Industry application of FRP Tanks
FRP tanks are widely used in petroleum, weaving factory, food brewing, electric power engineering, printing and dyeing factory, water supply and drainage engineering, chemical industry, seawater desalination, transportation, biological medicine, water conservancy irrigation and national defense engineering and other fields.
