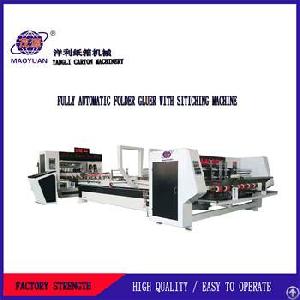

Cardboard Stitching Machine Fully Automatic Folder Gluer Machine
Yangli Fully Automatic Folder
Gluer Stitching Machine consists of five parts: paper feeding part, folding part, nail box part, counting output part and electrical control part. PLC controls the touch screen to input data, the nail box action is controlled by servo motor, the operation is simple and reliable
Fully Automatic Folder Gluer Machine Description
The utility model is composed of five parts: paper feeding part, folding part, nail box part, counting output part and electrical control part. PLC control touch screen input data, nail box action servo motor control, simple and reliable operation. Automatic paper supply, automatic folding, automatic correction, automatic nailing, automatic counting, automatic stacking output, before and after the whole machine, synchronous adjustment, order storage, distinguish the disadvantages of the assembly equipment of the sticking box machine and the nail box machine. Advanced technology, reliable quality.
The main motor adopts frequency conversion speed regulation, the system has no noise, the speed regulation is flexible and stable.
Adopt imported porous leather conveying board, adjust stable, efficient and accurate.
The paper feeding department can be adjusted by electric, which is suitable for the paper supply demand of various specifications cartons.
4, equipped with side-beat equipment to ensure that the paper is not skewed.
B、 folding section
With the paper supply part linkage, frequency conversion speed regulation, folding and paper feeding part pressure line synchronous adjustment.
The imported porous belt conveying paperboard is used to fold automatically and adsorb the whole process, which effectively avoids the phenomenon of skew slip pile paper in the work of various kinds of paperboard, such as weight box, laminating box and light box, and makes the whole machine more stable and efficient.
C、 Calibration Section
This machine will have a shaping device in front of the back of the folding part of the nail box, before the nail box will fold the folded carton again, make sure that the nail out of the carton without scissors mouth.
The calibration part is driven by servo motor.
D、 nail box
The head of the nail box adopts special material, which is wear-resistant and not easy to damage.
The machine features a servo motor driven directly by the nose, stable and accurate speed.
3, the nail thread adopts 2 plates 20 kg large plate flat wire automatic feeding device at a time, reduces the times of wire change, improves the production efficiency.
This machine can carry out the operation of single nail, double nail, reinforcing nail and head and tail nail.
The nail speed can reach 600 nails per minute.
E、 counting, stacking output
Complete the carton, beat again, count, stack and send out automatically.
We are a modern enterprise specializing in the production of carton packaging machinery and printing machinery, specializing in the production of Corrugated Boxes Machine, Corrugated Box Equipment. Strong technical force, advanced production and testing equipment, professional technical and management personnel and high-quality sales team.
