Gabion Mesh

Posted at: Offers to Sell and Export | Posted on: Wednesday 4 September 2013 7:26 am | Poster last visit: Monday 21 October 2013 |

Product Category: Main » Manufacturing Components and Supplies » Hardware » Metal nets and screening structures » Gabion » Gabion Mesh

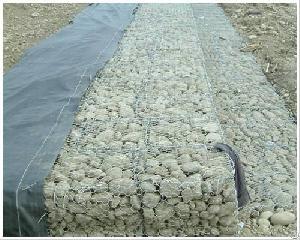

Product Photo:

gabion mesh

Similar Products Catalog:
Products Photos Catalog Gabion Mesh Photos Catalog

Product Description:

GABIONS consist of rectangular units, fabricated from a double-twisted hexagonal mesh. Filled with stones,



gabions become large, flexible and permeable elements from which a broad range of structures may be built. Gabions and mattresses are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc.

GABIONS are divided into cells with diaphragms (usually spaced at 1 meter or 3’ intervals), whose function is to reinforce the structure. The mesh (except for the diaphragms) is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.

Internation standard to follow:

ASTM 975 standard:

Style 1 galvanzied wire as per ASTM A 641, class 3 soft temper

Style 2 style 1 and overcoated with PVC

Style 3 Zn-5Al-MM coated wire as per ASTM A 856

EN 10223-3 standard:

Galvanzied wire meets EN 10244-2 and old BS 443

Tensile strength between 420N/mm2 and 500N/mm2 according to EN 10218-2

Tolerances:

On the hexagonal, double-twisted wire mesh opening shall not exceed ±10% on the nominal dimension
