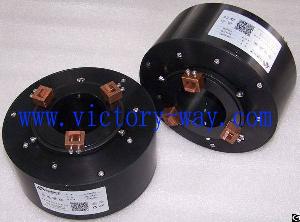

High Current Slip Ring For Use In High Temperature Dts-65x3p360
Posted at: Offers to Sell and Export | Posted on: Friday 11 May 2018 9:01 am | Poster last visit: Thursday 7 March 2019 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Power conditioning equipment
» Slip rings
» High Current Slip Ring For Use In High Temperature Dts-65x3p360
Product Description:
DTS-65X3P360 slip rings is designed for passing 3 ways 360A current in one body, of which the current
was lead out by copper strip from stator side and rotor side. The shaft of slip rings is made by heat-resisting plastic. Copper alloy material leads a reliable contact. This kind of slip ring is designed for 60RPM, based on good thermal design & heat-resisting materials.
A.Feature:
1)One-piece shaft design;
2)Copper alloy contact materials;
3)Separated design;
4)High operating speed;
5)Fit for use in the working condition of high temperature.
B.Technical Specification:
Channels: 3 rings（for signal）
Operation Voltage: 0~380VAC/DC
Current: 360A/Ring
Operate Speed: 60RPM
Contact material: Precious Metal
Operate temperature: -30～240℃
Electric noise: Max.40m Ω
Dielectric strength: 500VAC@50Hz, 60s
Insulation resistance: 500MΩ @600VDC
C.Application:
Rotary tables, test equipment;
Plating line;
High-power system;
Cable reels.
D.Option:
Higher voltage and current capacity;
Higher speed;
Wider range of temperature;
Higher protection class;
Style of exits for lead wires;
Flange for installation.
