Honeycomb Paper Panel Machine

Posted at: Offers to Sell and Export | Posted on: Monday 13 June 2011 6:58 am | Poster last visit: Tuesday 14 June 2011 |

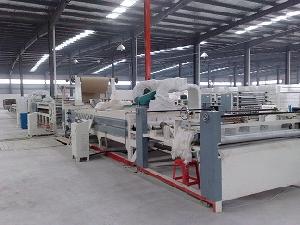

Product Photo:

honeycomb paper panel machine

Similar Products Catalog:
Products Photos Catalog Honeycomb Paper Panel Photos Catalog

Product Description:

Model HF(B)-1300 Economic

Max roll width 1350mm


Max panel width 1300mm

Max. laminating speed(designing)

10m/min

20m/min

Layers of face paper 2 layers(each one at top and bottom)

Thickness of panel 10-80mm(4''-40'')

Configuration

 Paper Roll Stand(Fully Hydraulic, without axle )

 Core Platform(insert)

 Gluing machine

 Pre-heater

 Expanding

 Core drying house

 Laminating & Drying part

 Cross Cutter

 Feeding machine

Max production

Capacity 5000 m2/shift

(core gluing)

Main motors Domestic Brand

Panel length 1200-1800mm(controlled by touch screen)

total electric power 120kw

Dimension 40000x2300x2200mm

Major Configuration

Paper Roll Control

L

1 paper feeder(two paper coils)

Mechanical type

Without axle

Pre-Heating

Preheating(deluxe type) is to remove the moisture contained in the paper core and also soften the paper core

preheating with iron heater to make the production speed higher

Core expanding& Drying  Cores are expanded by the calibrating& expanding roll

 Hot wind blowing

Gluing machine

Two glue applying methods:1. Glue the honeycomb core, 2.glue the face paper(users can adjust it according to actual needs)

Pressure conveying system 1  Pressure conveyor system guarantees fine laminating

 Conveyor speed is controlled

Panel drying Hot wind blowing

Panel Cutter

 Cutting length controlled by encoder

 tolerance +/-2mm

 Grinding device equipped

 Cut any length by inputting on Touch screen
