Horizontal Frp Tank

Posted at: Offers to Sell and Export | Posted on: Wed 10 May, 2017 7:32 am | Product Category: Horizontal relay [1]

horizontal frp tank
Products Photos CatalogHorizontal Frp Tank Photos Catalog



Horizontal FRP tank, also called horizontal FRP vessel, is a device composed by seepage-resistant and



anti-corrosive inner layer, firm structural layer, anti-aging outer layer, heads, nozzles, and saddle supports. FRP (Fiberglass Reinforced Plastic), its raw material, is a special kind of plastic which has been reinforced with fiberglass, similar to the way that rebar strengthens concrete. Horizontal FRP tank is a perfect choice when you are in need for storage tank but have a vertical height limitation. By using filament winding method, the material of horizontal FRP tank can be reinforced to adjust its physicochemical ability and meet different requirements.

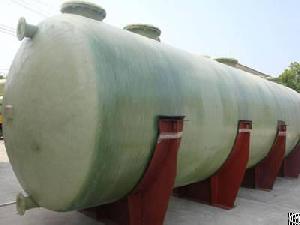

There is a horizontal FRP tank with two red saddle supports.

HFTP-01: Horizontal FRP tank is made by using filament winding method.Two horizontal FRP tanks are placed on the ground.

HFTP-02: Horizontal FRP tank is a perfect choice as a storage vessel.

This is the structural diagram of a horizontal FRP tank.

HFTP-03: Horizontal FRP tank can be manufactured in different dimensions as your requirements.

Specification - horizontal FRP tank

Model Nominal volume (m3) Actual volume (m3) Number of saddle supports Main container (mm) Thickness (mm) Weight (kg)

Dia. L1 L2 a b c

Hfts-01 1 1.25 2 1000 1460 960 500 25 50 10 280

Hfts-02 2 2.06 2 1000 1990 1400 500 25 50 12 295

Hfts-03 3 2.93 2 1000 2200 1700 500 25 50 12 297

Hfts-04 4 4.07 2 1200 2280 1680 500 25 80 15 480

Hfts-05 5 5.03 3 1400 2770 2070 500 25 80 18 650

Hfts-06 6 6.3 2 1600 3270 2470 500 25 80 18 750

Hfts-07 7 7.2 3 1600 3770 2970 500 25 80 18 780

Hfts-08 8 8.64 3 1800 4270 3370 500 25 80 20 840

Hfts-09 9 9.52 3 1800 4760 3860 500 40 80 20 920

Hfts-10 10 10.17 3 1800 5260 4360 500 40 80 20 1060

Hfts-11 16 15.17 3 1800 6120 5220 500 40 80 20 1500

Hfts-12 20 20.26 4 2200 6500 5400 500 50 100 25 2273

Hfts-13 25 24.83 4 2200 6800 5700 500 50 100 30 2718

Hfts-14 30 32 4 2300 7900 6750 500 50 100 32 4132

Hfts-15 40 40 3 2600 8310 7010 500 50 100 35 5086

Hfts-16 50 50.06 4 2800 9870 8470 500 50 100 40 6727

Hfts-17 63 60.6 3 2800 9990 8590 500 50 100 45 8797

Hfts-18 70 71.36 4 3000 10460 8960 500 50 100 48 10012

Hfts-19 80 80 4 3000 11880 10380 600 50 100 50 11463

Hfts-20 100 99.96 4 3000 14550 13050 600 50 100 50 13863

Hfts-21 120 120.1 4 3200 15400 13800 600 50 100 55 16971

Density of material: 1.7 - 2.0 g/cm3.

Roughness coefficient: 0.0084.

Colors: oyster white, bluish white, ivory, dark green and upon your request.

There is a 3D model of horizontal FRP tank with a ladder.

HFTP-04: Horizontal FRP tank can be sold with some accessories depending on the needs of our customers.This is a horizontal FRP tank with four red saddle supports.

HFTP-05: Horizontal FRP tank is made of a special kind of plastic which has been reinforced with fiberglass.

Features

Excellent physicochemical performance & durability: Horizontal FRP tank has high strength, good corrosion resistance and thermal insulation.

Long service life & low maintenance cost: Horizontal FRP tank has smooth inner wall which is non-toxic, odorless and easy to clean.

Wide range of application: Horizontal FRP tank is widely used in many different fields for storing kinds of liquid.

Light weight: Horizontal FRP tank is made of fiber reinforce plastic which is lightweight.

Application

Because of the notable advantage of its material, horizontal FRP tank is gradually taking the place of metal tanks in many field. Horizontal FRP tank is supplied for both above and underground applications and has an extensive usage in metallurgic industry, chemical industry, medical treatment industry, light industry, construction industry, textile industry, food industry and electroplating waste water treatment, etc.

Horizontal FRP tanks are stored on the yard.

HFTP-06: Horizontal FRP tank is lightweight and highly corrosion-resistant.A horizontal FRP tank is set on the truck, getting ready to be delivered.

HFTP-07: Horizontal FRP tank has an extensive usage in many field.

Package

Packed with foam and carton.

Tied with packing belt.
