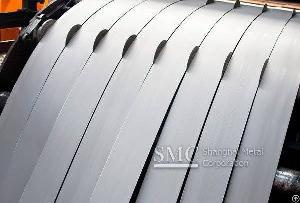

Specification of Hot Dip Galvanized Steel Strip:
1) Capacity: about 15, 000 ton per month for steel
2) Thickness: from 0.125mm to 5.0mm, all available.
3) Width: As your request
4) Grade: SGHC, Q195, SGCC, DX51D
5) Coil weight: from 50kg to 7000kg, all available.
6) Coil ID: 100mm/508mm
7) Tensile strength: 28.1-49.2kgf/mm2
8) Zinc coating weight: 30g/m2-600g/m2
9) Spangle : big spangle, normal spangle, small spangle, non-spangle
10) Surface treatment: chemical passivating treatment, oils, passivating + oils
11) Min trial order 5ton each thickness, 1 x 20' per delivery
12) Surface Treatment of Hot Dip Galvanized Steel Strip:
Surface Treatment Features
Chemical passivating treatment minimize the chance of white rust forming during transit and storage
maintain the bright, shiny appearance for a longer time
Oils minimize the tendency for storage and transit stain
Passivating + oils provide the protection from storage and transit stain by special chemicals called corrosion inhibitors 13)Spangle of Hot Dip Galvanized Steel Strip:
Surface finish Pattern Application
Normal spangle Standard spangles with flower pattern General uses
Small spanlge Minimized spangles than regular General painting applications
Non-spangle Extremely minimized spangles Special painting applications 14) Feature: Hot Dip Galvanized Steel Strip/Coil is manufactured to have a long durability, strong corrosion resistance and shiny surface.
It is also features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending.
