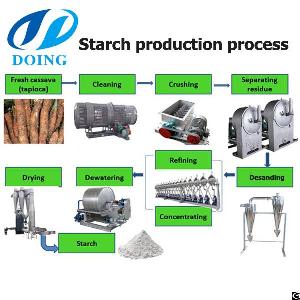

Cassava starch processing plant process:
Fresh cassava - Cassava cleaning and washing
- Grinding - Starch extraction - Filtering and desanding - Starch concentration and purification - Dewatering - Drying
Dry sieve - Paddle washer - Cutting machine - Rasper - Centrifuge sieve - Fine fiber sieve - Disc separator - Hydrocyclone - Vacuum filter - Flash dryer
Main equipments and its function in this cassava starch processing plant:
1) Cleaning parts of cassava starch processing plant:
Dry sieve: Widely used in impurities pre-removal for starch production. It's used to remove dirt, sand, small stones, weeds and other impurities that are attached on the surface of potato, sweet potato and cassavas.
Paddle washer: Mainly used to wash the raw materials. Adopted countercurrent washing principle. By the effect of paddle pushing, the raw material flows in the converse direction against water currently, which makes washing completely and eliminate sand and mud at most.
2) Crushing parts of cassava starch processing plant:
Cutting machine: Its main function is cut cassavas into small pieces, 3-5cm, for further processing.
Rasper: Break the materials, crush cassavas into slurry, release starch particles from cell, with high starch dissociation rate.
3) Starch extraction of cassava starch processing plant:
Centrifuge sieve: Used for the extraction of starch from the materials, remove fiber from starch slurry, high starch extraction rate.
4) Starch filtering and desanding of cassava starch processing plant:
Fine fiber sieve: It is a machine mainly for separating small particles of fiber from starch slurry. This process is achieved by gravity of the slurry and screen mesh inside the drum.
5) Starch concentration and purification of cassava starch processing plant:
Disc separator: It is widely used in processing of starch to separate protein and cell liquid out of slurry, with high separating factor.
Hydrocyclone: It is designed to get rid of related substances such as fiber and protein in the starch milk. For the starch's washing, concentration and purification.
Usually suggest this two machine used in combination, make the production high efficiency and high quality.
6) Drying system of cassava starch processing plant:
Vacuum filter: Widely used for the starch dewatering, final starch water content is 38%-42%.
Flash dryer: This is the last step for tapioca starch production. It adopts low temperature drying system, which will prevent starch gelatinization. Final starch water content is 12%-14%.
Above all, its the complete cassava starch processing plant.
