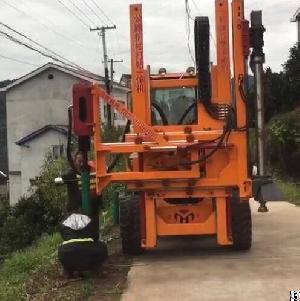

Hydraulic Guardrail Pile Driver

Posted at: Offers to Sell and Export | Posted on: Wed 25 Apr, 2018 8:07 am |

Product Category: Main » Building and Construction Machinery and Accessories » Heavy construction machinery and equipment » Earth moving machinery » Pile drivers » Hydraulic Guardrail Pile Driver


hydraulic guardrail pile driver
Products Photos CatalogHydraulic Guardrail Photos Catalog



Multi-functional Pile Drilling Machine

Technical Parameters:


Engine Model: Weicai 6105

Engine rated

power: 92Kw

Rated speed: 2300r/m

Max output torque:4500n/m

Hydraulic system flow: 40-65 ml/r

Hydraulic rated pressure: 16 Mpa

Drive system: 4 wheel drive

Max turing radius: 5000mm

Screw type air pressure: 0.8Mpa

Screw type air comsuption: 8 m3/min

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route: 500mm

Dedusting system: suction type

Air compressor method: screw type

Air compressor model: 8-10 upgrade

Max working slope: 35 degree

Cab configuration: luxury

Tire spec: 20.5/70-16

Brake configuration: Disc + automatically air-cut brake

Drilling diameter: 120-200mm

Drilling depth: 0-2100mm

Drilling Capacity: 320holes/day

Hydraulic hammper weight: 220kg

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic hammer working flow: 60-100 l/min

Working pressure of hydraulic hammer : 13-16Mpa

Max forward angular of frame: 12 degree

Max backwards angular of frame: 16 degree

Astern display: equipped

Emission standard: China II

Total weight: 5200kgs

Dimension(L*W*H): 5050*2310*3180mm

Guard rail: equipped

Add cover for enginee and cooling system

Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
