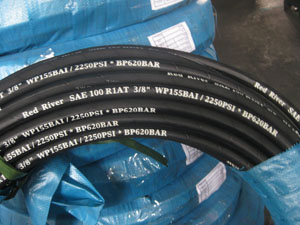

Hydraulic Rubber Hose-sae100 R1at
Posted at: Offers to Sell and Export | Posted on: Wednesday 24 February 2010 6:57 am | Poster last visit: Wednesday 14 April 2010 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Fluid and gas distribution
» Hoses
» Hydraulic hose
» Hydraulic Rubber Hose-sae100 R1at
Product Description:
1sn/r1at
sae 100 r1at / din en 853 1sn standard
Tube : Oil resistant synthetic rubber
Reinforcement
: one high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃
DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
5 3/16 4.8 9.5 11.8 25.0 3630 100.0 14280 89 0.19 50/100
6 1/4 6.4 11.1 13.4 22.5 3270 90.0 12840 102 0.21 50/100
8 5/16 7.9 12.7 15.0 21.5 3120 85.0 12280 114 0.24 50/100
10 3/8 9.5 15.1 17.4 18.0 2615 72.0 10280 127 0.33 50/100
13 1/2 12.7 18.3 20.6 16.0 2320 64.0 9180 178 0.41 50/100
16 5/8 15.9 21.4 23.7 13.0 1890 52.0 7420 203 0.45 50/100
19 3/4 19.0 25.4 27.7 10.5 1530 42.0 6000 241 0.58 50/100
25 1 25.4 33.3 35.6 8.8 1280 35.0 5020 305 0.88 50
32 1 1/4 31.8 40.5 43.5 6.3 920 25.0 3600 419 1.23 20 to 40
38 1 1/2 38.1 46.8 50.6 5.0 730 20.0 2860 508 1.51 20 to 40
51 2 50.8 60.2 64.0 4.0 580 16.0 2280 635 1.97 20 to 40
