Inch Omega Flexible Hose Coupling Used In Settlement Joint

Posted at: Offers to Sell and Export | Posted on: Monday 4 March 2019 7:31 am | Poster last visit: Wednesday 22 April 2020 |

Product Category: Main » Structures and Building and Construction and Manufacturing Components and Supplies » Concrete and cement and plaster » Concrete reinforcement hardware » Construction expansion joint » Inch Omega Flexible Hose Coupling Used In Settlement Joint

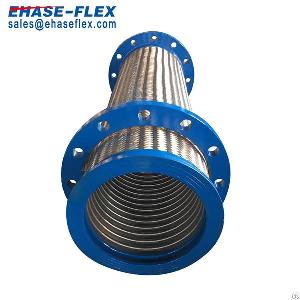

Product Photo:

omega flexible hose coupling settlement joint

Similar Products Catalog:
Products Photos Catalog Omega Flexible Hose Photos Catalog

Product Description:

Quick Details

Place of Origin: Zhejiang, China (Mainland)


Brand Name: Ehase-flex

Model Number: EH-600M-LH

Type:

Flange

Material: Stainless Steel, SUS304/316/321

Technics: Welding

Connection: Flange

Shape: Equal

Head Code: Round

Size: DN15-DN800

Standard: EJMA

Flange Standard: JIS, ANSI, DIN, B.S., JB.., Working Pressure: 10bar, 16bar, 25bar, 40bar, 63bar, 100bar

Temperature Rating: Max 1000℃

Certificate: ISO, FM

Max Offset: 50mm or Above

Application: Used in Deformation Joint to Compensate the Unequal Settlement

OEM/ODM: Allowed

Supply Ability

Supply Ability: 7000 Piece/Pieces per Week HS Code: 73607 29

Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case

No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China

Lead Time : 5-20 Working Days

Product Description

12 Inch Omega Flexible Hose Coupling Used in Settlement Joint

FM Approved

100% Before Delivery

Omega Bellows

More than 40-year experience in manufacturing

Application

Used for pump to link with tube, absorbing vibration and reducing the noise

Construction

Item Parts Material Remark

1 Bellows SUS304 SUS316/321

2 Braids SUS304

3 Seal Rings SUS304 SUS316

4 Flanges SS400 SUS304/316/321

Applied for larger offset and where the installing space is limited.

Features

1. Floating Flanges: Flanges can be adjusted according to the connection pipe, which let the installing easier compared with fixed flanges.

2. Excellent Welding Technology, like a fish swimming in water.

3. Omega Bellows, More Flexible and Longer Service Life.

Specification

NORMINAL BORE (mm) TOTAL LENGTH (mm) BELLOWS O.D.(mm) LATERAL MOVEMENT (mm) WORKING PRESSURE(kg/cm2)

eh-600m-l eh600m-lh

40 500 56.0 50 10 16

50 500 73.6 50 10 16

65 500 88.0 50 10 16

80 500 102.0 50 10 16

100 600 128.0 50 10 16

125 600 155.0 50 10 16

150 600 185.0 50 10 16

200 800 235.0 50 10 16

250 1000 286.0 50 10 16

300 1200 340.0 50 10 16

*Specifications stated above are standard. We can also design and manufacture according to customer's requriement

*Flange Standard: JIS, ANSI, DIN, B.S., JB, etc

Production Process

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month

Water Connectors: 5, 000, 000m Annual

Faq

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
