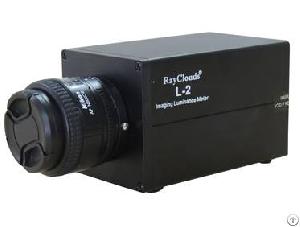

L-Series Imaging Luminancemeter is ideal for high precision, high speed luminance measurement. L-Series
of Imaging Luminancemeter is equipped with 2 million, 16 million and 20million pixel resolution CMOS detector, provides excellent luminance test solutions. Widely used in luminance measurement of FPD, automotive panel luminance analysis, etc.
L-Series Imaging Photometer Characteristic
L-Series Imaging Luminancemeter is equipped with 2 million, 16 million and 20million pixel resolution CMOS detector, provides excellent luminance test solutions.
L-2 measurement speed up to 100FPS at full resolution, making it ideal for high precision, high speed measurement applications.
L-16 features high frame rate and 128M DDR buffer memory, even in low configuration operating environments, it can be measured quickly.
L-20 with an ultra-high resolution of 2.4um, back-illuminated sensor and it can measure noise as low as one electron.
Support for reading and merging arbitrary partial images (ROI).
Multiple exposure and ND filters to achieve a wide range of measurement and up to 1000000:1 contrast.
L-Series is equipped with a Y filter.
L-Series Imaging Photometer Application
Uniformity of Flat Panel Displays
Mobile & Backlight Uniformity Analysis
Avionics and Automotive Panels & Ambient light Analysis
LED, Lens Beam Analysis
LED Lighting Products
Glare analysis of roads, indoor, tunnels, etc.
Based on the specific requirements of customers. We not only provide various standard optical measuring instruments, but also provide a customized system integration solution.
