Lpks-0205 Pan Cake Slip Ring With Through Bore 46.0mm

Posted at: Offers to Sell and Export | Posted on: Friday 18 December 2015 3:04 am | Poster last visit: Monday 28 March 2016 |

Product Category: Main » Electrical Systems and Lighting and Components and Accessories and Supplies » Electrical equipment and components and supplies » Electrical lugs plugs and connectors » Circular connectors » Lpks-0205 Pan Cake Slip Ring With Through Bore 46.0mm

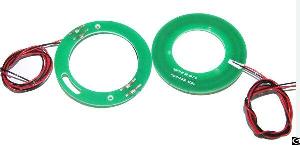

Product Photo:

lpks 0205 pan cake slip ring bore 46 0mm

Similar Products Catalog:
Products Photos Catalog Lpks 0205 Pan Cake Photos Catalog

Product Description:

LPKS-0205 Slip Ring with Through Bore 46.0mm can be used in any electromechanical system that requires



unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutator. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.

The 46.0mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPKS-0205 Pan Cake Slip Ring uses advanced fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.

Features:

1. 6mm THK

2. Pancake separate PCB design

3. Compact 82mm outside diameter

4. Steel bearings and machined shaft and housing for harsh environments

5.Collar mounting is standard; flange mounting is optional

6.Various lead exits are available

7. Silver plated rings are standard. Gold plated optional.

8. Continuous 360° rotation of power or data signals

Advantage:

1.Transfers control and data signals

2.Fiber brush technology provides maintenance-free operation (no lubrication required)

3. Modular design meets special requirements through off-the-shelf manufacturing techniques

4.Customized configurations for your application

Main Application:

1.Packaging / wrapping machinery

2.Semiconductor handling systems

3.Industrial machinery

4. Exhibit Display machinery

5. Medical equipment

6. Rotary index tables

7.Process control equipment

8. Emergency lighting, robotics Palletizing machines, 9.Heavy equipment turrets or cable reels

Option:

1. Placement of custom circuitry directly onto the unit

2.Custom mechanical integration features

3. Addition of specialist components

4.Inclusion of coax and miniature data bus cables

Contact us to discuss your special needs

Specification:

Circuits 2 circuits

Operating Speed 100rpm

Working Temperature -20℃~ +60℃

Working Humidity 60%RH or higher

Electrical:

Voltage Rating 380VAC/DC or higher

Current Rating 5A per circuit

Dielectric Strength ≥1000V@50Hz between each circuit

Insulation Resistance 1000MΩ@ 500VDC

Electrical Noise 1mΩ Min

Mechanical:

Contact Material Precious metal

Shaft Material PCB

Shaft Diameter Φ46mm

Lead Wire Size Tinning AWG22

Lead Wire Length Standard 300mm (11.811inch)

Torque ≤0.12 g•m (for reference )
