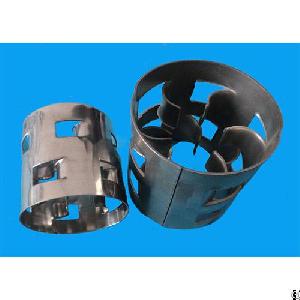

Metal Pall Ring
Pall Rings Packing, Metal Pall Rings Packing
of Metal pall ring
Model SizeD*H*δ/mm No. Per Volumen/m3 Specific Aream2/m3 Void Volume% Drying Packing Factorm-1
Dg16 16X16X0.4 185000 239 92.8 299
Dg25 25X25X0.6 51900 219 93.4 269
Dg38 38X38X0.8 13800 129 94.5 153
Dg50 50X50X1.0 6500 112.3 94.9 131
Dg76 76X76X1.2 1830 71 96 80
Pall Ring, the structure improve distribution of gas-liquid and its efficiency can be improved above 50%, and only has half of pressure drop compared with Raschig ring.
Features: Pall ring has some advantages, such as lower pressure drop, big flux, high efficiency, which HYPAK packing has better efficiency and lower pressure drop and better distribution of liquid compared with common pall ring.
Application: It can be applied to various of device of isolation, absorption, desorption, common decompression such as toluene separation, ethylbenzene separation, isooctane separation and desulfurization system and so on.
Materials: Steel, Carbon Steel, Aluminum.
