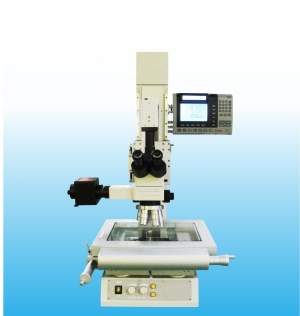

Metallurgical Tool-maker Microscopes Rx Series
Posted at: Offers to Sell and Export | Posted on: Tuesday 9 August 2011 7:51 am | Poster last visit: Wednesday 8 May 2019 |
Product Description:
Usage:
This machine is suitable for observation and measurement in the industries of LCD, conducting
particles filter, mobile phone screen, FPD module semiconductor wafers, FPC-PCB, IC CD package, image sensor CCD, CMOS, PDA light source etc.
Specifications:
Instrument Model RX-200 RX-300
Optical System Infinity optical system (objective tube focusing:200mm, parfocal distance: 95mm)
Eyepiece Tube Hinge-type trinocular eyepiece tube, inclination: 30°, interpupillary distance:55-75mm
Eyepiece High-eye-point wide view-field eyepiece WF10X/22
Objective Turret 5 holes objective transducer
Objective (N.A) Plan achromatic objectives: 2X/0.055, 5X/0.14, 10X/0.28, 20X/0.29, 50X/0.42
Objective Working Distance
(Over-length Working Distance) W.D.: 35mm, 45mm, 34mm, 30.8mm, 20.5mm
Polarizing Light System Spectral range: 480-550mm with the polarizer and analyzer
Illumination 12V 50W halogen reflect illumination, 10W LED contour illumination
Coarse Focusing Method Electric lifting system (Japan “Shinano” stepper motor), lifting range: 200mm
Fine Focusing Method Manual fine focusing with division:0.002mm, changing range: 40mm
Stage 8” fast-moving stage (working travel:
200x100mm) 12” fast-moving stage (working travel:
300x200mm)
Digital Resolution 0.5um
Measuring Accuracy 2+L/250um
Digital Data Processor DP-100
CCD Adapter 0.5X CCD adapter
CCD Camera Sony 1/2” 0.43Mpixel color CCD camera
Measuring Software RX-J metallurgical measuring software
Optional Accessories 100X/0.55 objective (W.D 12.5) (Olympus U-DIC interference mirror)
Company Contact:
Contact Name: Shirley
Company Name: Guiyang Joint-Win Import And Export Co., Ltd
Email:
Tel: 86-851-6578100
Fax: 86-851-6578700
Street Address: 8 Floor, 4 Unit, F
Building, Hequan Road, Guiyang
Guizhou 550002 China
Website: http://www.joint-win.com.cn
Member name: jointwin
Country:
China
Member Since: 09 August 2011
Total Leads: 17 jointwin Import Export Business Leads
Business focus: Vision Measuring Machine, Precise Measuring Instruments Integrated With Optics, Profile Projector, Tool Maker Microscope
